Electronic Components Distributor > KEL > Connectors > Board to board connectors > 8925E-100-179-F 198pcs
8925E-100-179-F198pcs
Category Connectors
Manufacture KEL
Stock Order
Ship date 4week (inquiry before Shipment)
Price US$1,597.86
Standard Packing Qty 6pcs
Minimum Order Qty 198pcs
Quantity cart
KEL Board to board connectors 8925E-100-179-F 198pcs

Wiring components
Board to board connectors

1.27mm pitch connectors
RoHS compliant

Connectors with the Eject-Lock mechanism, allowing one-handed insertion and release.
With strain relief

Type: Receptacle
Pitch: 1.27mm
Number of contacts: 100
Contact name: 179
Material:Glass-filled Nylon 66 (UL 94V-0) (Insulator), Copper alloy (Contact and Retention clip)
Plating: Gold over Nickel (Contact), Tin copper over Nickel (Retention clip)
Recommended cable: AWG#30(7/0.102), Flat ribbon cable
Rated current: 0.5A per contact
Insulation resistance: 1000MΩ min. at 250V DC
Operating temperature: -55 to 85℃

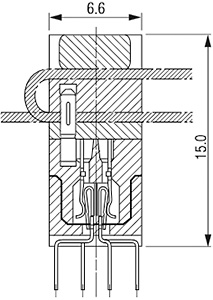

Dimensions of 8925E

Sort by selling qty

Model No Quantity Price Unit Price SPQ Ship date
8925E-100-179-F 48pcs 48pcs US$390.24 US$8.13 6pcs 1week
8925E-100-179-F 198pcs 198pcs US$1,597.86 US$8.07 6pcs 4week
