Electronic Components Distributor > Mac8 > Connectors > Connectors for PCB > KZ-5-4 100pcs
KZ-5-4100pcs
Category Connectors
Manufacture Mac8
Stock Order
Ship date inquiry (inquiry before Shipment)
Price US$271.00
Standard Packing Qty 10pcs
Minimum Order Qty 100pcs
Quantity cart
Mac8 Connectors for PCB KZ-5-4 100pcs

Wiring components
Connectors for PCB
Connectors for DIP board
Right angle type

Angle type (Fixed type)(For high current)[KZ series]
It can mount 2 PC boards vertically.
It is possible to flow high current/
It is used by solder application on the both side.

Material
Resin part: PPS Black(UL-94V-0)
Pin part: Brass
Finish: Au plating over Ni

Rated current: 30A
Rated voltage: 250V AC,DC
Insulation resistance: 500M ohm or more
Dielectric strength: 2000V AC,DC 1 min
Operating temperature range(degree celcius): -40 to +125
Recommended through-hole diameter: 2.3 phi mm
Pitch distance: 5.08mm
No. of pins: 10 max.
Dimensions: A- 6.2mm, B- 3mm
A side applicable PCB thickness: 3.2t
B side applicable PCB thickness: 1.6t
RoHS compliant

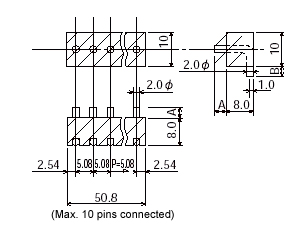

image_mac8_kz.
image_mac8_kz_1.

Sort by selling qty

Model No Quantity Price Unit Price SPQ Ship date
KZ-5-4 100pcs 100pcs US$271.00 US$2.71 10pcs inquiry
