Electronic Components Distributor > Mac8 > Sockets > Sockets for laser diodes > LDS-1-NL 10pcs
LDS-1-NL10pcs
Category Sockets
Manufacture Mac8
Stock Order
Ship date 4week (inquiry before Shipment)
Price US$170.30
Standard Packing Qty 1pc
Minimum Order Qty 10pcs
Quantity cart
Mac8 Sockets for laser diodes LDS-1-NL 10pcs

PCB components
Sockets for laser diodes

Connector for Laser diode

With 50cm electric cable(red and black)

Material
Housing: PPS resin Black (UL94V-0)
Socket-body = Brass, Contact = BeCu
Finish: Au plating over Ni
Current Capacity: 10A
Rated voltage: 20V AC, DC
Withstanding Voltage: 500V AC, DC 1 min
Insulation Resistance: 500M Ohm and over
Contact Resistance: 10m Ohm and below/pin
Capacity of removal and Insertion: 100 times+
Cable size: AWG-18
Operating temperature range(degrees Celsius): -40 to +100
Adaptive male pin diameter: 0.8 ~ 1.1 phi mm

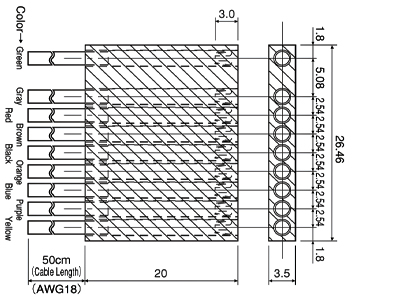

image_mac8_lds-1-nl.

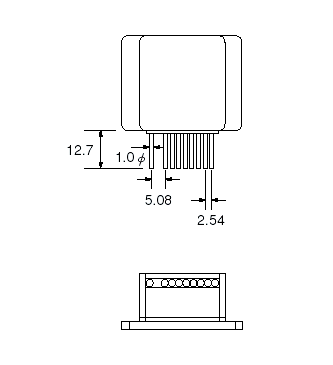

image_mac8_lds-1-nl_1.

Sort by selling qty

Model No Quantity Price Unit Price SPQ Ship date
LDS-1-NL 10pcs 10pcs US$170.30 US$17.03 1pc 4week
