Electronic Components Distributor > Mac8 > Sockets > Extension pin > QE-8-07 1000pcs
QE-8-071000pcs
Category Sockets
Manufacture Mac8
Stock Order
Ship date inquiry (inquiry before Shipment)
Price US$160.00
Standard Packing Qty 100pcs
Minimum Order Qty 1000pcs
Quantity cart
Mac8 Extension pin QE-8-07 1000pcs

PCB components
Extension pin

Extension pin
RoHS compliant

Used for lack of pin's length in soldering lead component on a thick printed board.
1. Solder and fix on a printed board with 7mm or less than that of thickness.
2. Put and solder a lead product in a upper hole.

Material: Brass
Finish: Tin plating over Ni

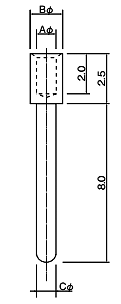

Dimensional Drawing
Dimension: A=0.8mm, B=1.4mm, C=0.7φ
Hole diameter of printed board: 0.8φ (mm)
*Some pins have bentness because of small diameter and long length.

Dimension of QE

Sort by selling qty

Model No Quantity Price Unit Price SPQ Ship date
QE-8-07 1000pcs 1000pcs US$160.00 US$0.16 100pcs inquiry
