Electronic Components Distributor > Mac8 > Adjusting parts > Terminals for additional parts > QB-15-6 100pcs
QB-15-6100pcs
Category Adjusting parts
Manufacture Mac8
Stock Order
Ship date 3week (inquiry before Shipment)
Price US$95.00
Standard Packing Qty 10pcs
Minimum Order Qty 100pcs
Quantity cart
Mac8 Terminals for additional parts QB-15-6 100pcs

PCB components
Terminals for additional parts

Terminals for additional components
RoHS compliant

1. Insert to vertical penetrated through-hole with 0.8φ on printed board and solder.
2. Put electronic components in slit sleeves on the top and solder.

Material
Resin part: PPS Black (UL94V-0)
Metal part: Brass
Finish: Tin plating over Ni
Dielectric strength: 1000V AC, DC 1min
Operating temperature range: -40 to ＋125℃

Mountable through-hole diameter: Min.0.8φ (mm)
Mountable lead diameter: Max.1.1φ (mm)
A=15mm, B=21mm, C=6mm

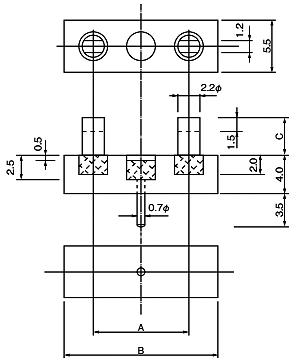

Dimension of QB

Sort by selling qty

Model No Quantity Price Unit Price SPQ Ship date
QB-15-6 100pcs 100pcs US$95.00 US$0.95 10pcs 3week
