HH-5-G-T10reel
Category Connectors
Manufacture Mac8
Stock Order
Ship date inquiry (inquiry before Shipment)
Price US$2,210.00  (around US$0.737/pc)
Standard Packing Qty 300pcs / 1reel
Minimum Order Qty 10reel
Quantity cart
Mac8 Connectors for PCB HH-5-G-T 10reel

Wiring components
Connectors for PCB
Connectors for SMT

Connector for SMT Electric Power Supply, HH-5 series

Can supply electric source to Surface Mount Board
Material
Body: Brass/ Finish: Plated Au over Ni base
Contact: Beryllium Copper/ Finish: Plated Au over Ni base

Rated current: 20A
Contact Resistance: 10m ohm and below
Capacity of Insertion and Removal: 100 times and over
Force to Insert and Remove: 150g and over
Recommended Male Pin Diameter: 1.7 to 2.1 phi mm
Male pin: OP-50-2
Clamp: HH-5-R
Temperature Range (degrees Celsius): -40 to +125
Packaged in tape-reel(300pcs/reel)
RoHS compliant

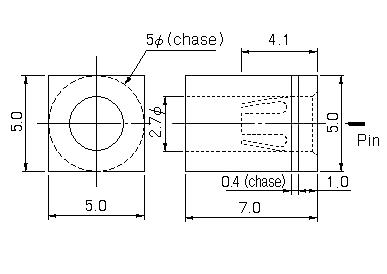

image_mac8_hh-5.
image_mac8_hh-5-1.

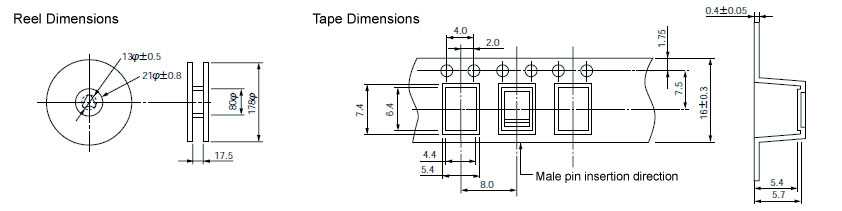

image_mac8_hh-5-t.

Sort by selling qty

Model No Quantity Price Unit Price SPQ Ship date
HH-5-G-T 1reel 1reel US$234.74 US$234.74 1reel inquiry
HH-5-G-T 10reel 10reel US$2,210.00 US$221.00 1reel inquiry
