Electronic Components Distributor > Mac8 > Connectors > Connectors for PCB > HHP-2-T 1reel
HHP-2-T1reel
Category Connectors
Manufacture Mac8
Stock Order
Ship date 8week (inquiry before Shipment)
Price US$370.41  (around US$0.529/pc)
Standard Packing Qty 700pcs / 1reel
Minimum Order Qty 1reel
Quantity cart
Mac8 Connectors for PCB HHP-2-T 1reel

Wiring components
Connectors for PCB
Jumpers
Jump sockets for SMT

Jump socket for surface mount

Can switch by combination with JHP-3
Insertion of JHP-3 is ON, and remove it from HHP is OFF
Reflow is possible

Material
Contact: Beryllium Copper
Resin: PCT black(UL94V-0)
Finish: Au plating over Ni

Rated current: 1A
Insulation resistance: 500M ohn ot more
Dielectric strength: 500V AC, DC 1min
Contact resistance: 10m ohn or more
Force to Insert and Remove: 50g and over
Recommended Male Pin Diameter: 0.3 phi mm
Packaged in tape-reel(300pcs/reel)
Temperature Range (degrees Celsius): -40 to +125
RoHS compliant
image_mac8_hhp-2.

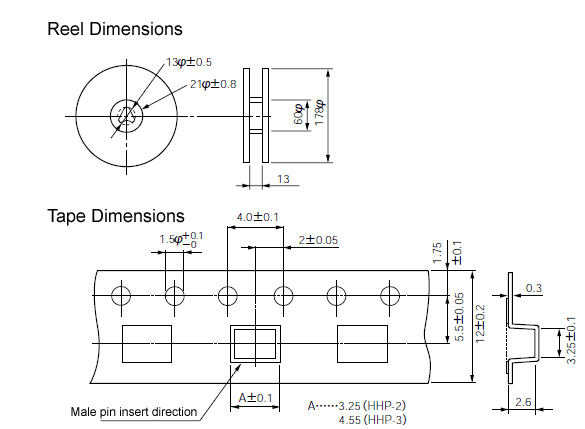

image_mac8_hhp-t.

Sort by selling qty

Model No Quantity Price Unit Price SPQ Ship date
HHP-2-T 1reel 1reel US$370.41 US$370.41 1reel 8week
HHP-2-T 10reel 10reel US$3,523.30 US$352.33 1reel 8week
