HHY-1 10pcs Sockets Mac8
| Category | Sockets |
| Manufacture | Mac8 |
| Stock | Order |
| Ship date | inquiry (inquiry before Shipment) |
| Price | US$71.60 |
| Standard Packing Qty | 10pcs |
| Minimum Order Qty | 10pcs |
PCB components
Connecting sockets for SMT
Socket for surface mount, Connected type, HHY-1 series
When long connected type is used, it may happen to bend on reflow.
Use of glue to prevent from bending is recommendable.
Use of glue between PC board and resin part is also recommendable.
Material
Contact part: Beryllium Copper
Resin: PCT black(UL94V-0)
Finish: Au plating over Ni
No. of poles: 40
Pitch distance: 1.27mm
Rated current: 1A
Rated voltage: 125V AC, DC
Insulation resistance: 500M ohn or more
Dielectric strength: 500V AC, DC 1min
Contact resistance: 10m ohn or more
Mating/unmating: 100 times or more
Mating/unmating forces: 30g or more
Recommended Male Pin Diameter: 0.3 to 0.45 phi mm

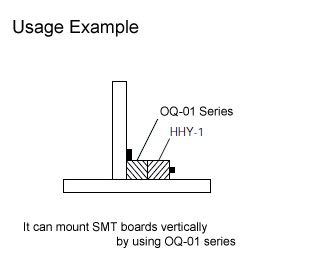

Adaptable to OQ-01, OQS-01
Temperature Range (degrees Celsius): -40 to +125
RoHS compliant
Sort by selling qty
| Model No | Quantity | Price | Unit Price | SPQ | Ship date |
|---|---|---|---|---|---|
| HHY-1 10pcs | 10pcs | US$71.60 | US$7.16 | 10pcs | inquiry |
| HHY-1 100pcs | 100pcs | US$637.00 | US$6.37 | 10pcs | inquiry |
