Electronic Components Distributor > Mac8 > Sockets > Sockets for through hole > PDB-10-3 1000pcs
PDB-10-31000pcs
Category Sockets
Manufacture Mac8
Stock Order
Ship date 2week (inquiry before Shipment)
Price US$290.00
Standard Packing Qty 100pcs
Minimum Order Qty 1000pcs
Quantity cart
Mac8 Sockets for through hole PDB-10-3 1000pcs

PCB components
Sockets for through hole

Socket(both direction)[PDB series]
RoHS compliance

This can be inserted to both part-surface and soldered-surface

Material:
Body: Brass
Contact: Beryllium copper
Finish:
Body: Tin plating over Ni base
Contact: Gold plating over Ni base
Operating temperature range: -40 to +125℃
Adaptive printed board thickness: 1.6t or less
Adaptive male pin diameter: 0.9 to 1.0φ
Male pin contact point:
Part-surface side: 2.84mm
Soldered-surface side: 0.5mm
Printed board fitting hole diameter: 2.3φ

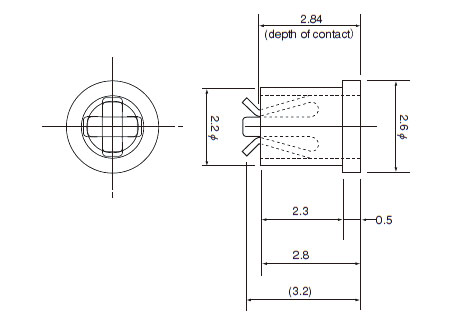

Dimensions of PDB

Sort by selling qty

Model No Quantity Price Unit Price SPQ Ship date
PDB-10-3 1000pcs 1000pcs US$290.00 US$0.29 100pcs 2week
