Electronic Components Distributor > Mac8 > Sockets > Sockets for through hole > PDB-05-2.6 1000pcs
Category Sockets
Manufacture Mac8
Stock Order
Ship date 3week
Price USD360.00
Standard Packing Qty 100pcs
Minimum Order Qty 1000pcs
Quantity cart
Mac8 Sockets for through hole PDB-05-2.6  1000pcs

PCB components
Sockets for through hole

Socket(both direction)[PDB series]
RoHS compliance

This can be inserted to both part-surface and soldered-surface

Body: Brass
Contact: Beryllium copper
Body: Tin plating over Ni base
Contact: Gold plating over Ni base
Operating temperature range: -40 to +125℃
Adaptive printed board thickness: 1.6t or less
Adaptive male pin diameter: 0.45 to 0.6φ
Male pin contact point:
Part-surface side: 2.65mm
Soldered-surface side: 0.5mm
Printed board fitting hole diameter: 1.5φ

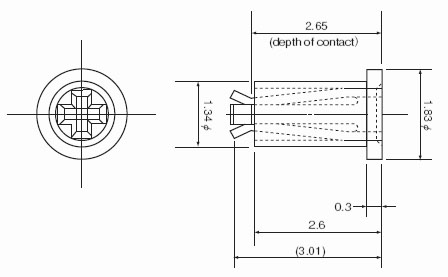

Dimensions of PDB

Sort by selling qty

Model No Quantity Price Unit Price SPQ Ship date
PDB-05-2.6 500pcs 500pcs USD200.00 USD0.40 100pcs 3week
PDB-05-2.6 1000pcs 1000pcs USD360.00 USD0.36 100pcs 3week
PDB-05-2.6 3000pcs 3000pcs USD1,020.00 USD0.34 100pcs 4week
