Electronic Components Distributor > Mac8 > Sockets > Sockets for LED > LQ-255 100pcs
LQ-255100pcs
Category Sockets
Manufacture Mac8
Stock Order
Ship date 4week (inquiry before Shipment)
Price US$372.00
Standard Packing Qty 10pcs
Minimum Order Qty 100pcs
Quantity cart
Mac8 Sockets for LED LQ-255 100pcs

PCB components
Sockets for LED
DIP type

Socket for laser diode [LQ-2 series]

Material
Resin part: PPS Black(UL94V-0)
Socket: Body part- Brass, Contact- Beryllium copper
Finish: Au plating over Ni

Current Capacity: 1A
Contact resistance: 10m ohm or less
Insulation resistance: 500M ohm or more
Dielectric strength: 1000V AC, DC 1min
Mating/unmating duability: 100 times or more
Mating/unmating forces: 30g or more/pin
Reflow is possible.
Operating temperature range (degrees celcius): -40 to +125
Recommended through-hole diameter: 0.6 phi mm
Adaptable male pin diameter: 0.25 to 0.35 phi mm
RoHS compliant

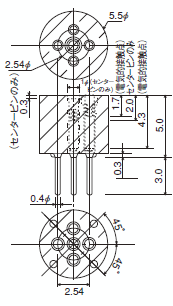

image_mac8_lq-255-d.

Sort by selling qty

Model No Quantity Price Unit Price SPQ Ship date
LQ-255 100pcs 100pcs US$372.00 US$3.72 10pcs 4week
