Electronic Components Distributor > Mac8 > Sockets > Socket pins > MEW-3-1 10pcs
MEW-3-110pcs
Category Sockets
Manufacture Mac8
Stock Order
Ship date inquiry (inquiry before Shipment)
Price US$76.50
Standard Packing Qty 10pcs
Minimum Order Qty 10pcs
Quantity cart
Mac8 Socket pins MEW-3-1 10pcs

PCB components
Socket pins
For two-tiered

Super small b to b connector/Scoket pin

Connect the boards with MXW-3 series.
20 pins connected each at 2.54mm pitch in 2 row.
Material
Resin part: PCT Black(UL94V-0)
Body part: Brass
Finish
Body part: Sn plating
Contact part: Au plating over Ni
Rated current: 1A
Insulation resistance: 500M ohm or more
Dielectic strength: 1000V AC,DC 1min
Mating/unmating duability: 100 times or more
Mating/unmating forces: 30g or more/pin
Contact resistance: 10m ohm or less
Adaptable male pin diameter: 0.35 to 0.47phi mm
Recommended through-hole diameter: 0.9phi mm
Operating temperature range(degrees Celsius): -40 to +125
RoHS compliant

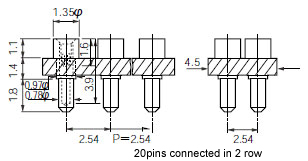

image_mac8_mew-3-1-d.

Sort by selling qty

Model No Quantity Price Unit Price SPQ Ship date
MEW-3-1 10pcs 10pcs US$76.50 US$7.65 10pcs inquiry
MEW-3-1 100pcs 100pcs US$683.00 US$6.83 10pcs inquiry
