Electronic Components Distributor > Mac8 > Connectors > Connectors for PCB > OAS-3-2 100pcs
OAS-3-2100pcs
Category Connectors
Manufacture Mac8
Stock Order
Ship date 2week (inquiry before Shipment)
Price US$130.00
Standard Packing Qty 10pcs
Minimum Order Qty 100pcs
Quantity cart
Mac8 Connectors for PCB OAS-3-2 100pcs

Wiring components
Connectors for PCB
Connectors for SMT
Two-tiered terminals

Connector with the Placement Pins(OAS series)

Use it when connecting PCB for surface mount one another.(Mating/unmating type)
OBS series for socket.

Material
Resin part: PPS Black(UL94V-0)
Pin part: Phosphor bronze
Finish
Au plating over Ni
Rated current: 2A
Insulation resistance: 500MΩ or more
Dielectric strength: 1000V AC,DC 1min
Operating temperature range(degree celcius): -40 to +125
Dimensions(mm) L: 2, A: 1.27, B: 50.8, H: 7
Number of poles: 20
2.54mm pitch
RoHS compliant

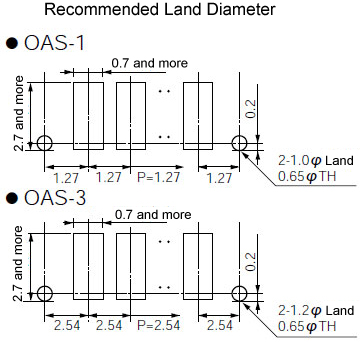

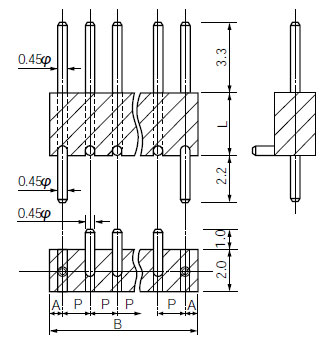

image_mac8_oas-d.
image_mac8_oas_1.

Sort by selling qty

Model No Quantity Price Unit Price SPQ Ship date
OAS-3-2 100pcs 100pcs US$130.00 US$1.30 10pcs 2week
