Electronic Components Distributor > Mac8 > Connectors > Connectors for PCB > OBS-3-5 100pcs
OBS-3-5100pcs
Category Connectors
Manufacture Mac8
Stock Order
Ship date 4week (inquiry before Shipment)
Price US$348.00
Standard Packing Qty 10pcs
Minimum Order Qty 100pcs
Quantity cart
Mac8 Connectors for PCB OBS-3-5 100pcs

Wiring components
Connectors for PCB
Connectors for SMT
Two-tiered terminals

Socket with the Placement Pins

Possible to make double piles of PC boards with OAS series.
Possible to use the placement socket electrically as well as socket for surface mount.
Pitich Distance: 2.54mm
Max. number of pin: 20
A: 50.8mm

Material
Resin part: PPS Black(UL94V-0)
Socket part...Body part: Brass/Contact part: Beryllium copper
Finish
Body: Sn plating over Ni
Contact: Au plating over Ni
Reflow type

Rated current: 1A
Insulation resistance: 1000M ohm or more
Dielectric strength: 1000V AC,DC 1min
Contact resistance: 10m ohm or less
Mating/unmating duability: 100 times or more
Mating/unmating forces: 30g or more/pin
Applicable male pin diameter: 0.4~0.5 phi mm
RoHS compliant
image_mac8_obs-d.

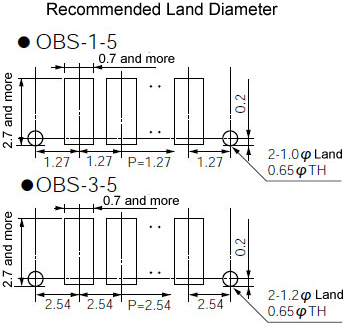

image_mac8_obs_1.

Sort by selling qty

Model No Quantity Price Unit Price SPQ Ship date
OBS-3-5 100pcs 100pcs US$348.00 US$3.48 10pcs 4week
