OK-002-S10000pcs
Category Adjusting parts
Manufacture Mac8
Stock Order
Ship date 1week (inquiry before Shipment)
Price US$300.00
Standard Packing Qty 1000pcs
Minimum Order Qty 10000pcs
Quantity cart
Mac8 Terminals for checking design errors OK-002-S 10000pcs

PCB components
Terminals for checking design errors

For designing error/check [OK series]

Desgining errors of PCB makes it look bad since soldering is done directly on IC legs.
This can insert to the hole with IC legs, and cables can be wired through it.
Use it for checking also.

Recommended through-hole diameter: 0.8 phi mm
Adaptable cable diameter: 0.5 phi mm or less (2 lines can be in)
Material: Phosphor bronze 0.2t
Finish: Sn plating over Ni
For wiring on the soldering side.(Put it with IC legs together.
IC legs should be cut to prevent covering over the hole of terminal
For signal line on the soldering side.
RoHS compliant
image_mac8_ok-002-d.

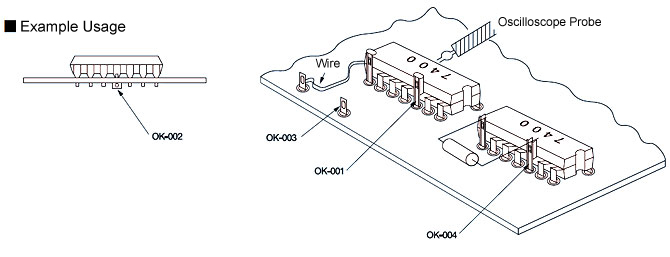

image_mac8_ok_1.

Sort by selling qty

Model No Quantity Price Unit Price SPQ Ship date
OK-002-S 10000pcs 10000pcs US$300.00 US$0.03 1000pcs 1week
