Electronic Components Distributor > Mac8 > Sockets > Connecting sockets for SMT > PCW-1-1 100pcs
PCW-1-1100pcs
Category Sockets
Manufacture Mac8
Stock Order
Ship date 5week (inquiry before Shipment)
Price US$1,948.00
Standard Packing Qty 10pcs
Minimum Order Qty 100pcs
Quantity cart
Mac8 Connecting sockets for SMT PCW-1-1 100pcs

PCB components
Connecting sockets for SMT

Socket pin, Connected in 2 row type (Vertical), for surface mount [PCW Series]

40 pins connected in 1.27mm pitch in 2 row.
Connect PCB with OQW-01, OQWS-01.
Reflow type.

Material
Body part: Brass
Contact part: Beryllium copper
Resin part: PCT black (UL94V-0)
Finish
Body part: Sn plating over Ni
Contact part: Au plating over Ni

Rated current: 1A
Rated Voltage: 125V AC, DC
Contact resistance: 10m ohm or less
Insualtion resistance: 500M ohm or more
Dielectric strength: 700V AC, DC 1min
Operating temperature range(degrees Celsius): -40 to +125

Mating/unmating (times): 100 times or more
Mating/unmating forces: 30g or more
Recommended male pin diameter: 0.35 to 0.47phi mm
RoHS compliant

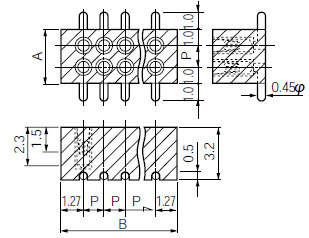

image_mac8_pcw-d.
image_mac8_pcw-3-1-d.

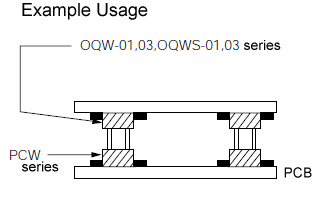

image_mac8_pcw_1.

Sort by selling qty

Model No Quantity Price Unit Price SPQ Ship date
PCW-1-1 10pcs 10pcs US$205.00 US$20.50 10pcs 4week
PCW-1-1 100pcs 100pcs US$1,948.00 US$19.48 10pcs 5week
