PEM-1100pcs
Category Sockets
Manufacture Mac8
Stock Order
Ship date 1week (inquiry before Shipment)
Price US$494.00
Standard Packing Qty 10pcs
Minimum Order Qty 100pcs
Quantity cart
Mac8 Connecting sockets for SMT PEM-1 100pcs

PCB components
Connecting sockets for SMT

Socket pin, Connected type [PEM-1]

Connect PCB with OQ-13, OQS-13, MX series.
Also usable as IC socket.

Material
Body part: Brass, Sn plating over Ni
Contact part: Beryllium copper, Au plating over Ni
Resin part: PCT black (UL94V-0)
Rated current: 1A
Rated voltage: 125V AC, DC
Contact resistance: 10m ohm or less
Insulation resistance: 500M ohm or more
Dielectric strength: 1000V AC, DC 1minMating/unmating (times): 100 times or more
Mating/unmating forces: 70g or more (/pin)
Recommended male pin diameter: 0.45 to 0.6phi mm
No. of pins: 20P
Operating temperature range(degree Celsius): -40 to +125
RoHS compliant
image_mac8_pem-1-d.
image_mac8_pem-1_1.

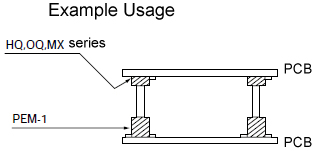

image_mac8_pem-1_2.

Sort by selling qty

Model No Quantity Price Unit Price SPQ Ship date
PEM-1 100pcs 100pcs US$494.00 US$4.94 10pcs 1week
