Electronic Components Distributor > Mac8 > Sockets > Socket pins > PJ-2-7.5 100pcs
PJ-2-7.5100pcs
Category Sockets
Manufacture Mac8
Stock Order
Ship date inquiry (inquiry before Shipment)
Price US$67.00
Standard Packing Qty 100pcs
Minimum Order Qty 100pcs
Quantity cart

PCB components
Socket pins
SMT type
Sockets for power supply

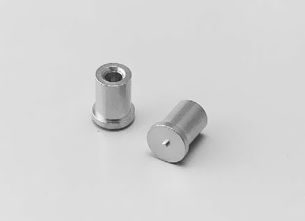

Power supply socket, for surface mount [PJ-2-7.5]

It is a socket that can supply power to the surface mount.
The reel type has adsorption cap.
After it is soldered, please discard it.
Male side is OP-7-1, OP-7-2
Use DX series when yo usupply power to the two-stage PCB.

Material
Body: Brass
Contact: Beryllium copper
Finish
Body: Au plating over Ni
Contact: Au plating over Ni

Rated current: 20A
Contact resistance: 10m ohm or less
Mating/unmating duability: 100 times or more
Mating/unmating force: 150g or more
Adaptable male pin diameter: 1.7 to 2.1phi mm
Operating temperature range(degrees Celsius): -40 to +125
100pcs/package
RoHS compliant
image_mac8_pj-d.
image_mac8_pj_1.

Sort by selling qty

Model No Quantity Price Unit Price SPQ Ship date
PJ-2-7.5 100pcs 100pcs US$67.00 US$0.67 100pcs inquiry
