Electronic Components Distributor > Mac8 > Sockets > Socket pins > PM-1.0 100pcs
PM-1.0100pcs
Category Sockets
Manufacture Mac8
Stock Order
Ship date inquiry (inquiry before Shipment)
Price US$1,280.00
Standard Packing Qty 10pcs
Minimum Order Qty 100pcs
Quantity cart
Mac8 Socket pins PM-1.0 100pcs

PCB components
Socket pins

Ultra-compact socket pin [PM-1.0 series]

It can make double pile PCB by a combination of MY-1.0-2.6.8(Length between PCB is 4.15mm)

Material
Resin part: PPS black(UL94V-0)
Body part: Brass
Contact part: Beryllium copper
Finish: Au plating over Ni

Rated current: 1A
Contact resistance: 10m ohm or more
Insulation resistance: 500m ohm or more
Dielectric strength: 500V AC, DC
Operating temperature range(dgree range): -40 to +125
Mating/umating force: 20g or more/pin
Mating/unmating duability: 100times or more
Recommenced through-hole diameter: 0.4 to 0.5phi mm
Adaptable male pin diameter: 0.2 to 0.35phi mm
Pitch distance: 1mm
No. of pins: 40
RoHS complaint

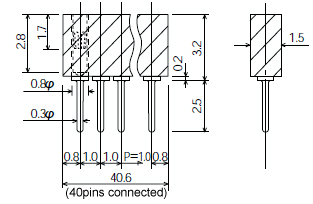

image_mac8_pm-1.0-d.

Sort by selling qty

Model No Quantity Price Unit Price SPQ Ship date
PM-1.0 10pcs 10pcs US$140.60 US$14.06 10pcs inquiry
PM-1.0 100pcs 100pcs US$1,280.00 US$12.80 10pcs inquiry
