PMW-61100pcs
Category Sockets
Manufacture Mac8
Stock Order
Ship date inquiry (inquiry before Shipment)
Price US$499.00
Standard Packing Qty 10pcs
Minimum Order Qty 100pcs
Quantity cart
Mac8 Socket pins PMW-61 100pcs

PCB components
Socket pins

Socket, for OWW series [PMW-61]

Can connect two PCB together by a combination of OWW series.
Can be used as a LED socket.
20pins connected in 2.54mm pitch

Material
Body: Brass, Sn plating over Ni
Contact: Beryllium copper, Au plating
Resin: PBT black(UL94V-0)

Rated current: 3A
Contact resistance: 10m ohm or less
Insulation resistance: 500M ohm or more
Dielectric strength: 1000V AC, DC 1min
Mating/unmating duability: 100 times or more
Mating/unmating force: 70g or more/ pin
Operating temperature range(degrees Celsius): -40 to +125
Adaptable male pin diameter: 0.6 to 0.8phi mm
Recommended through-hole diameter: 0.8phi mm
RoHS compliant

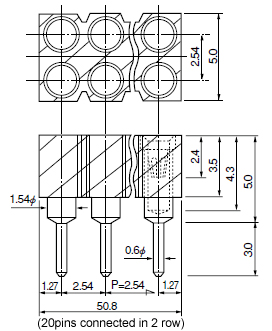

image_mac8_pmw-61-d.

Sort by selling qty

Model No Quantity Price Unit Price SPQ Ship date
PMW-61 100pcs 100pcs US$499.00 US$4.99 10pcs inquiry
