WLT-8100pcs
Category Connectors
Manufacture Mac8
Stock Order
Ship date 4week (inquiry before Shipment)
Price US$690.00
Standard Packing Qty 10pcs
Minimum Order Qty 100pcs
Quantity cart
Mac8 Connectors for PCB WLT-8 100pcs

Wiring components
Connectors for PCB
Connectors for DIP board
Terminals for wrapping

Wirewrap terminal [WLT Series]

34 pins connected each at 2.54mm pitch in 3 row.
On/off 20 circuits at the same time by the combination with JSW-1.

Material
Resin part: PBT black (UL94V-0)
Pin part: Phosphorus bronze
Finish: Au plating over Ni

Rated current: 3A
Insulation resistance: 500M ohm or more
Dielectric strength: 1000V Ac, DC 1min
Recommended through-hole diameter: 1.0 to 1.1phi mm
Operating temperature range(degrees Celsius): -40 to +125
RoHS compliant

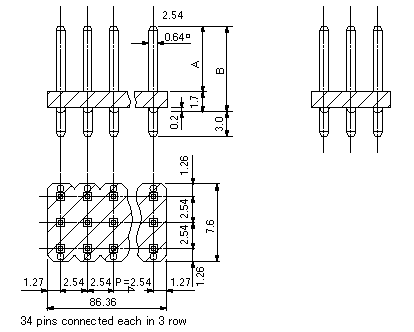

Dimensions(mm) A: 8.0 B: 9.7
image_mac8_wlt-d.

Sort by selling qty

Model No Quantity Price Unit Price SPQ Ship date
WLT-8 10pcs 10pcs US$77.90 US$7.79 10pcs 3week
WLT-8 100pcs 100pcs US$690.00 US$6.90 10pcs 4week
