WM-12010pcs
Category Sockets
Manufacture Mac8
Stock Order
Ship date 1week
Price USD87.30
Standard Packing Qty 10pcs
Minimum Order Qty 10pcs
Quantity cart
Mac8 Socket pins WM-120  10pcs

PCB components
Socket pins
Long leg sockets

Socket pin, Long pin type [WM Series]

20 pins connected at 2.54mm pitch.

Material
Resin part: PCT black (UL94V-0)
Body part: Brass
Contact part: Beryllium copper
Finish
Contact: Au plating
Body: Au plating

Rated current: 1A
Rated voltage: 125V AC, DC
Contact resistance: 10m ohm or less
Insulation resistance: 500M ohm or more
Dielectric strength: 1000V AC, DC 1min
Operating temperature range(degrees Celsius): -40 to +125

Mating/unmating (durability): 100 or more
Resommended male pin diameter: 0.45 to 0.6phi mm
Recommended through-hole diameter: 0.8phi mm
RoHS compliant

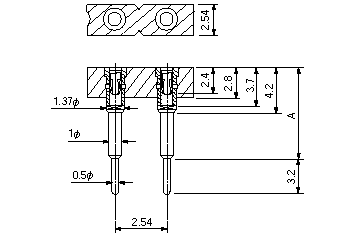

Dimensions A: 12.0mm
image_mac8_wm-d.

Sort by selling qty

Model No Quantity Price Unit Price SPQ Ship date
WM-120 10pcs 10pcs USD87.30 USD8.73 10pcs 1week
WM-120 50pcs 50pcs USD397.50 USD7.95 10pcs inquiry
