XB-3-2.5 100pcs Connectors Mac8
| Category | Connectors |
| Manufacture | Mac8 |
| Stock | Order |
| Ship date | inquiry (inquiry before Shipment) |
| Price | US$167.00 |
| Standard Packing Qty | 10pcs |
| Minimum Order Qty | 100pcs |
Wiring components
Connectors for PCB
Connectors for DIP board
CONTHROUGH( Board to Board connectors)
For two-tiered

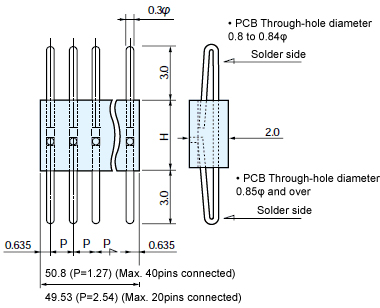

Board to board connector, XB series
Max. No.of pins: 20
Pitch distance: 2.54mm

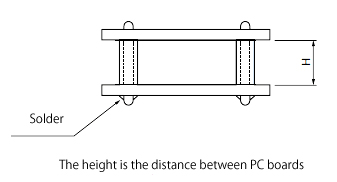

H: 2.5mm
Reflow type
Material
Pin part: Be Cu, Resin part: LCP black (UL94V-0)
Finish: Au plating over Ni
Rated current: 1A
Rated voltage: 125V AC,DC
Contact resistance: 30m ohm or less
Insulation resistance: 500M ohm or more
Dielectric strength: 1000V AC,DC 1min

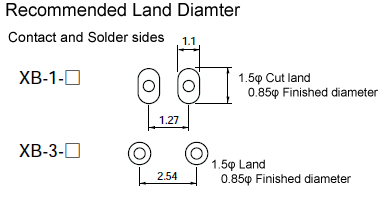

Applicable through-hole diameter(contact side): 0.8 to 0.9 phi mm TH, finished diameter(please make each hole as 0.85 phi mm)
Applicable PCB thickness: 0.8 to 1.6t
Operating temperature range(degree celcius): -40 to +125
Operating humidity range: 0 to 85%RH (no condensation)
Duability: 50 times or less (to the same through-hole)
RoHS compliant
Sort by selling qty
| Model No | Quantity | Price | Unit Price | SPQ | Ship date |
|---|---|---|---|---|---|
| XB-3-2.5 100pcs | 100pcs | US$167.00 | US$1.67 | 10pcs | inquiry |
