BZ-2-1100pcs
Category Sockets
Manufacture Mac8
Stock Order
Ship date 2week (inquiry before Shipment)
Price US$715.00
Standard Packing Qty 10pcs
Minimum Order Qty 100pcs
Quantity cart
Mac8 Connector terminal supports BZ-2-1 100pcs

PCB components
Connector terminal supports

Socket pin for making terminal board [BZ Series]

This is the socket for 2.0 phi mm plug.
Use for supply of signal line, power source, etc. to PCB.
Material
Resin part: PBT black (UL94V-0)
Pin part: Phosphorus bronze, Gold plating over Ni

Rated current: 10A
Contact resistance: 20m ohm or less
Insulation resistance: 500M ohm or more
Dielectric resistance: 1000V AC, DC 1min
Operating Operating temeprature range(degrees Celsius): -40 to +125
Adaptable male pin diameter: 2.0phi mm
Mating force: 800g/pin
Unmating force: 100g or more/pin
Recommended through-hole diameter: 1.2phi mm
Adaptable plug: OP-7-1, OP-7-2, OP-7-2-100
RoHS compliant

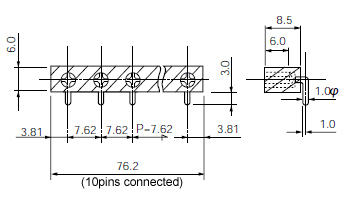

image_mac8_bz-2-1-d.

Sort by selling qty

Model No Quantity Price Unit Price SPQ Ship date
BZ-2-1 10pcs 10pcs US$79.80 US$7.98 10pcs 2week
BZ-2-1 100pcs 100pcs US$715.00 US$7.15 10pcs 2week
