2.6SN-6-T1reel
Category Screws
Manufacture Mac8
Stock Order
Ship date 4week (inquiry before Shipment)
Price US$116.61  (around US$0.194/pc)
Standard Packing Qty 600pcs / 1reel
Minimum Order Qty 1reel
Quantity cart
Mac8 Screws for SMT 2.6SN-6-T 1reel

PCB components
Screws for SMT
M2.6

Screw for surface mount [SN Series]

Can mount to surface mount boards.
This screw has a surface projection to prevent the displacement.
Open 1phi mm throguh-holes.
Can attach various things.
It is possible to flow electricity.

Material: Brass
Finish: Sn plating over Ni

Rated current: 20A
Recommended Cream Solder Thickness: 150 to 200 ?
*Please pour solder into TH hole.
Recommended Land Diameter(outside): 6phi mm
Tightening torque: 4kg.f.cm and below
Screw: M2.6

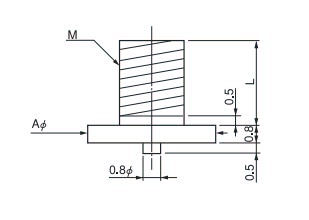

Dimensions L: 6mm A: 5phi mm

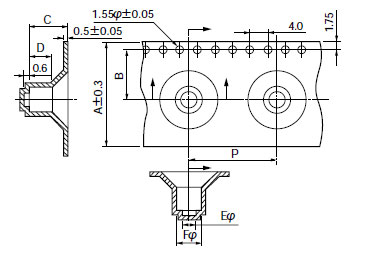

Tape dimensions(mm) A: 24 B: 11.5 C: 6.9 D: 4.5 E: 3.2 F: 5.2 P: 16
Embossed tape packaging, 600pcs/reel
RoHS compliant
image_mac8_sn-d.
image_mac8_sn-t.

Sort by selling qty

Model No Quantity Price Unit Price SPQ Ship date
2.6SN-6-T 1reel 1reel US$116.61 US$116.61 1reel 4week
2.6SN-6-T 10reel 10reel US$1,055.30 US$105.53 1reel 5week
