LE104 1000pcs Noise Suppression Capacitors Okaya Electric
| Category | Noise Suppression Capacitors |
| Manufacture | Okaya Electric |
| Stock | Order |
| Ship date | 2week (inquiry before Shipment) |
| Price | US$130.00 |
| Standard Packing Qty | 200pcs |
| Minimum Order Qty | 1000pcs |
Circuit protection components
Noise Suppression Capacitors
RoHS compliant
Rated voltage 275Vac.
Compact size.
IEC/EN 60384-14 class X2.
Metalized polypropylene film capacitor.
Designed mainly for suppressing noise occurring in power line of electrical appliances
Rated Voltage: 275Vac
Class: X2
Capacitance: 0.1µF±10%
Dissipation Factor: C≤1µF 0.003max.(f=10kHz) C>1µF 0.002max.(f=1kHz)
Test Voltage:
(Line to Line)C≤2.2µF 1250Vac 50/60Hz 60sec C=3.3µF 1000Vac 50/60Hz 60sec
(Line to Case)2100Vac 50/60Hz 60sec
Insulation Resistance:
(Line to Line)103〜334 15000MΩmin. 474〜225 5000ΩFmin.
(Line to Case)100000MΩmin.(at 100Vdc)
Operating Temperature: -55〜＋100℃
Safety standard: UL:UL60384-14 cUL:CSA E60384-14 ENEC:IEC/EN60384-14

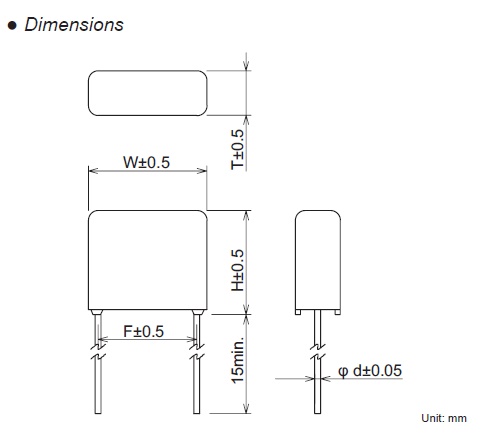

Dimensions: (W)17.0mm (H)11.5mm (T)5.5mm (F)15.0mm (d)0.6mm
Sort by selling qty
| Model No | Quantity | Price | Unit Price | SPQ | Ship date |
|---|---|---|---|---|---|
| LE104 1000pcs | 1000pcs | US$130.00 | US$0.13 | 200pcs | 2week |
