REB104 400pcs Noise Suppression Capacitors Okaya Electric
| Category | Noise Suppression Capacitors |
| Manufacture | Okaya Electric |
| Stock | Order |
| Ship date | 8week (inquiry before Shipment) |
| Price | US$80.00 |
| Standard Packing Qty | 50pcs |
| Minimum Order Qty | 400pcs |
Circuit protection components
Noise Suppression Capacitors
RoHS compliant
X2 class capacitor RE series with insulated flexible wire leads.
Two types of wire (single wire type & multiple wire type).
IEC/EN 60384-14 class X2
Designed mainly for suppressing noise occurring in power line of electrical appliances.
Rated Voltage: 275Vac
Class: X2
Capacitance: 0.1µF±10%
Dissipation Factor: 0.003max.(at 10kHz)
Test Voltage:
(Line to Line)1250Vac 50/60Hz 60sec
(Line to Case)2000Vac 50/60Hz 60sec
Insulation Resistance:
(Line to Line)C≤0.33µF 15000MΩmin. 474〜225 5000Ω•Fmin.
(Line to Case)C=0.47µF 5000MΩFmin.(at 100Vdc)
Operating Temperature: -40 to ＋100℃
Safety standard: UL:UL60384-14, cUL:CSA E60384-14, ENEC:IEC/EN60384-14

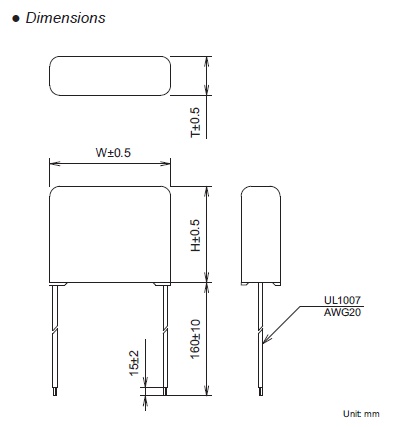

Dimensions: (W)17.0mm, (H)15.0mm, (T)8.0mm
Sort by selling qty
| Model No | Quantity | Price | Unit Price | SPQ | Ship date |
|---|---|---|---|---|---|
| REB104 400pcs | 400pcs | US$80.00 | US$0.20 | 50pcs | 8week |
