Category | Switches |
Manufacture | ALPSALPINE |
Stock | Order |
Ship date | 4week (inquiry before Shipment) |
Price | US$100.00 |
Standard Packing Qty | 1000pcs |
Minimum Order Qty | 1000pcs |
Setting components
Tactile switches

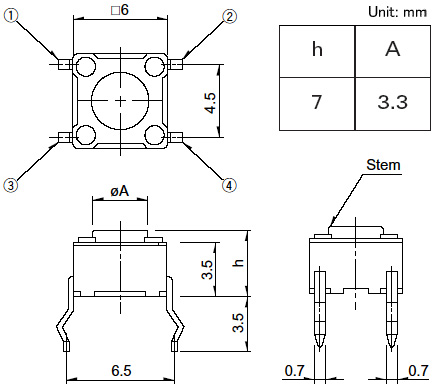

6mm Square TACT switch
Type: Snap-in
RoHS compliant
Type: Snap-in
Operating force: 1.57N
Operating direction: Top push
Travel: 0.25mm
Operating life(5mA 5V DC): 500000cycles
Initial contact resistance: 100mΩ max.
Stem color : Dark gray
Stem height : h = 7mm
Series type: Sharp feeling Type
Operating temperature: -40℃ to +90℃
Rating (max.): 50mA 12V DC
Rating (min.): 10µA 1V DC
Insulation resistance: 100MΩmin. 100V DC for 1min.
Voltage proof: 250V AC for 1min.
Vibration resistance: 10 to 55 to 10Hz/min., the amplitude is 1.5mm for all the frequencies, in the 3 direction of X, Y and Z for 2 hours respectively
Resistance to low temperatures: -40±2℃ for 96h
Heat resistance: 90±2℃ for 96h
Moisture resistance: 60±2℃, 90 to 95%RH for 96h
Sort by selling qty
Model No | Quantity | Price | Unit Price | SPQ | Ship date |
---|---|---|---|---|---|
SKHHBWA010 1000pcs | 1000pcs | US$100.00 | US$0.10 | 1000pcs | 4week |
