Electronic Components Distributor > Hirose Electric > Connectors > Round shaped connectors > RM15WTPZ-2P(77) 40pcs
RM15WTPZ-2P(77)40pcs
Category Connectors
Manufacture Hirose Electric
Stock Order
Ship date inquiry (inquiry before Shipment)
Price US$240.00
Standard Packing Qty 1pc
Minimum Order Qty 40pcs
Quantity cart
Hirose Electric Round shaped connectors RM15WTPZ-2P(77) 40pcs

Wiring components
Round shaped connectors
Miniature multipole connectors
Plugs

General-purpose Multi-Contact Circular Waterproof Connectors, RM-W series

Shell size: 15 phi mm
Type of rock mechanism: Screw lock
Type of connector: Plugs - Straight, short back shell
No. of contacts: 2
Shape of contact: Pin
Plating: Gold plated

Rated voltage: AC600V, DC840V
Rated current: 10A
Contact resistance: 2m ohm or less/ 1A DC
Insulation resistance: 1000M ohm or more/ 500V DC
Dielectric strength: No flashover or insulation breakdown./ 1800V AC 1min
Operating temperature range(degree celcius): -25 to +85
RoHS compliant
Weight=32g
HRS No.109-1616-9-72

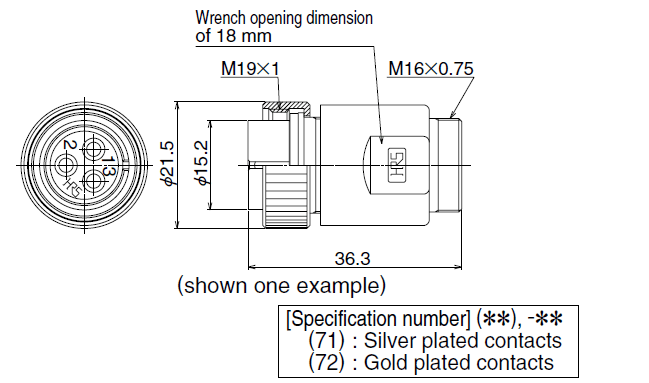

Dimension_RM15WTPZ-S_P.

Sort by selling qty

Model No Quantity Price Unit Price SPQ Ship date
RM15WTPZ-2P(77) 40pcs 40pcs US$240.00 US$6.00 1pc inquiry
