Electronic Components Distributor > Cosel > Switching power supplies > PCB unit type > LDC30F-1-S 2pcs
LDC30F-1-S2pcs
Discontinued product
Category Switching power supplies
Manufacture Cosel
Stock Order
Ship date 3week (inquiry before Shipment)
Price US$70.68
Standard Packing Qty 1pc
Minimum Order Qty 2pcs
Quantity cart
Cosel PCB unit type LDC30F-1-S 2pcs

Power supplies
PCB unit type
Multi output

AC-DC Power Supplies Open Frame/ Enclosed type LDC15F

with Chassis

Input voltage [V]: AC85 - 264 1φ or DC110 - 370

DC output:
V1: +5V 3.0(Peak 4.5)A
V2: +12V 1.2(Peak 2.0)A
V3: -12V 0.3(Peak 0.45)A

Peak load for 10sec. or less is acceptable if the total wattage is less than the rated wattage(-1: 33W, -2: 34.5W).
When the load of +5V is OA, other output can be drawn by 80% of rated current

Output voltage adjustment range:
V1: Fixed
V2: Fixed
V3: Fixed

Operating temp., humid. and altitude:
: -10 to +60℃
: 20 - 90%RH (Non condensing) (Refer to Derating curve)
: 3,000m (10,000feet) max

Case size/Weight:
65x26x140mm [2.56x1.02x5.51 inches] (WxHxD)
220g max (without chassis and cover)

Cooling method: Convection

RoHS compliant

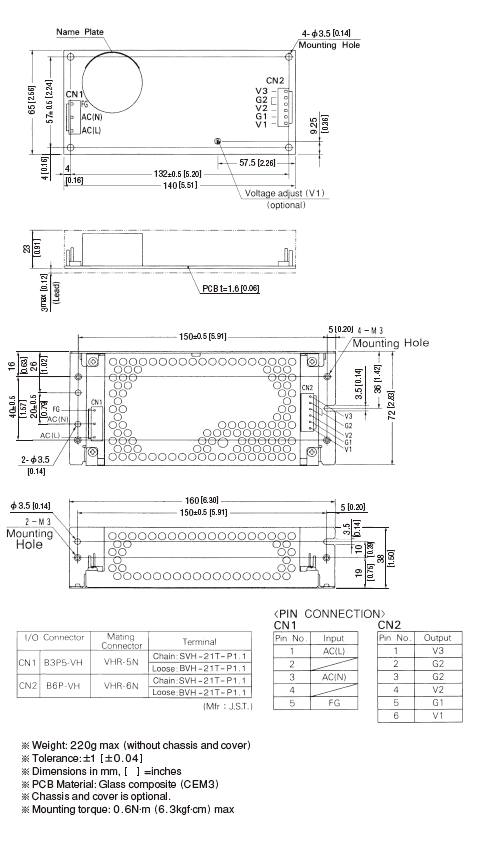

Structure_of_LDC30F

Sort by selling qty

Model No Quantity Price Unit Price SPQ Ship date
LDC30F-1-S 2pcs 2pcs US$70.68 US$35.34 1pc 3week
