LGA100A-5 3pcs Switching power supplies Cosel

AC-DC Power Supplies Open Frame/ Enclosed type LGA100A

Max output wattage [W]: 100
Input voltage [V]: AC85 - 132 1φ (Derating)
Output voltage [V]: 5
Output current* [A]: 20
*Peak loading for 10sec.And Duty 35% max.or less is acceptable if the total wattage is less than the rated wattage.
Output voltage adjustment range [V]: 4.50-5.50
Operating temperature: -10 to +60℃
Humidity: 20 - 90%RH (Non condensing)
Altitude: 3,000m (10,000feet) max

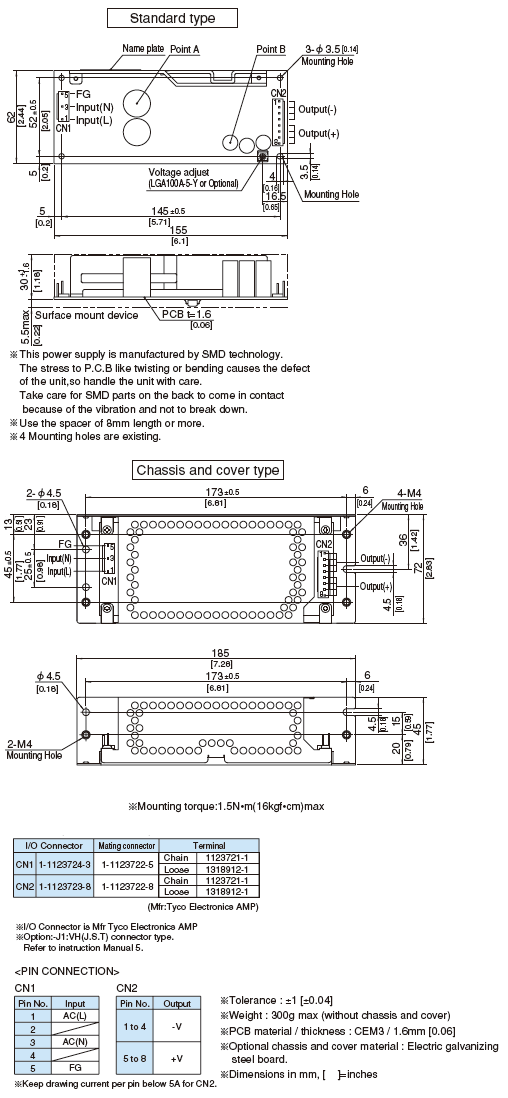

Case size: 62x35.5x155mm [2.44x1.4x6.1 inches] (WxHxD)
Weight: 300g max (without chassis and cover)
Cooling method: Convection

RoHS compliant
Safety agency approvals: UL60950-1, C-UL (CSA60950-1), EN60950-1 Complies with DEN-AN
