LGA240A-24-J1 2pcs Switching power supplies Cosel
| Category | Switching power supplies |
| Manufacture | Cosel |
| Stock | Order |
| Ship date | 3week (inquiry before Shipment) |
| Price | US$104.26 |
| Standard Packing Qty | 1pc |
| Minimum Order Qty | 2pcs |
Power supplies
PCB unit type
Single output

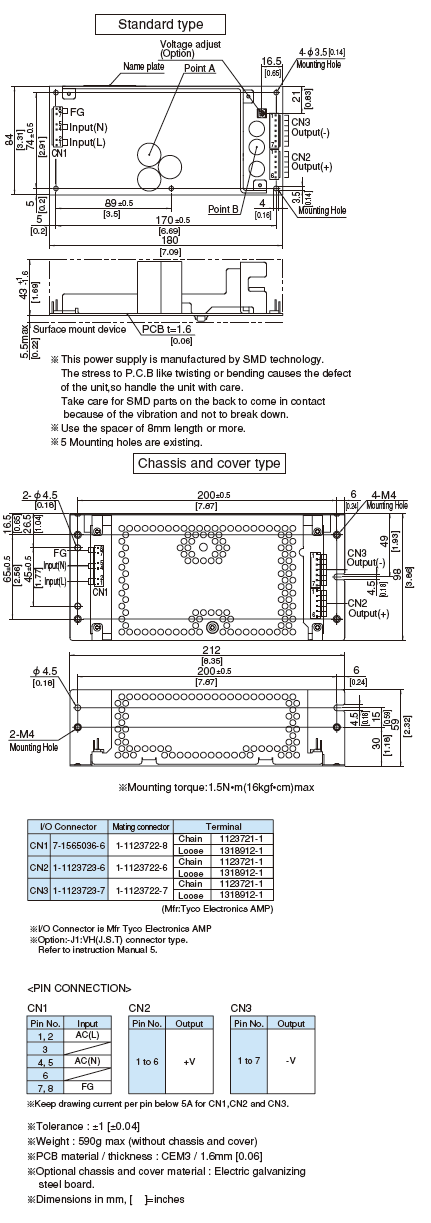

AC-DC Power Supplies Open Frame/ Enclosed type LGA240A
VH (J.S.T.) connector type
Max output wattage [W]: 240
Input voltage [V]: AC85 - 132 1φ (Derating)
Output voltage [V]: 24
Output current* [A]: 10.0
*Peak loading for 10sec.And Duty 35% max.or less is acceptable if the total wattage is less than the rated wattage.
Output voltage adjustment range [V]: Fixed Y which can be adjusted the output is available as optional ±10%)
Operating temperature: -10 to +60℃
Humidity: 20 - 90%RH (Non condensing)
Altitude: 3,000m (10,000feet) max
Case size: 84x48.5x180mm [3.31x1.91x7.09 inches] (WxHxD)
Weight: 590g max (without chassis and cover)
Cooling method: Convection
RoHS compliant
Safety agency approvals: UL60950-1, C-UL (CSA60950-1), EN60950-1 Complies with DEN-AN
Sort by selling qty
| Model No | Quantity | Price | Unit Price | SPQ | Ship date |
|---|---|---|---|---|---|
| LGA240A-24-J1 2pcs | 2pcs | US$104.26 | US$52.13 | 1pc | 3week |
