LGA50A-12 5pcs Switching power supplies Cosel
| Category | Switching power supplies |
| Manufacture | Cosel |
| Stock | Order |
| Ship date | 3week (inquiry before Shipment) |
| Price | US$81.75 |
| Standard Packing Qty | 1pc |
| Minimum Order Qty | 5pcs |
Power supplies
PCB unit type
Single output
AC-DC Power Supplies Open Frame/ Enclosed type LGA50A
Max output wattage [W]: 51.6
Input voltage [V]: AC85 - 132 1φ (Derating)
Output voltage [V]: 12
Output current* [A]: 4.3
*Peak loading for 10sec.And Duty 35% max.or less is acceptable if the total wattage is less than the rated wattage.
Output voltage adjustment range [V]: Fixed Y which can be adjusted the output is available as optional ±10%)
Operating temperature: -10 to +60℃
Humidity: 20 - 90%RH (Non condensing)
Altitude: 3,000m (10,000feet) max

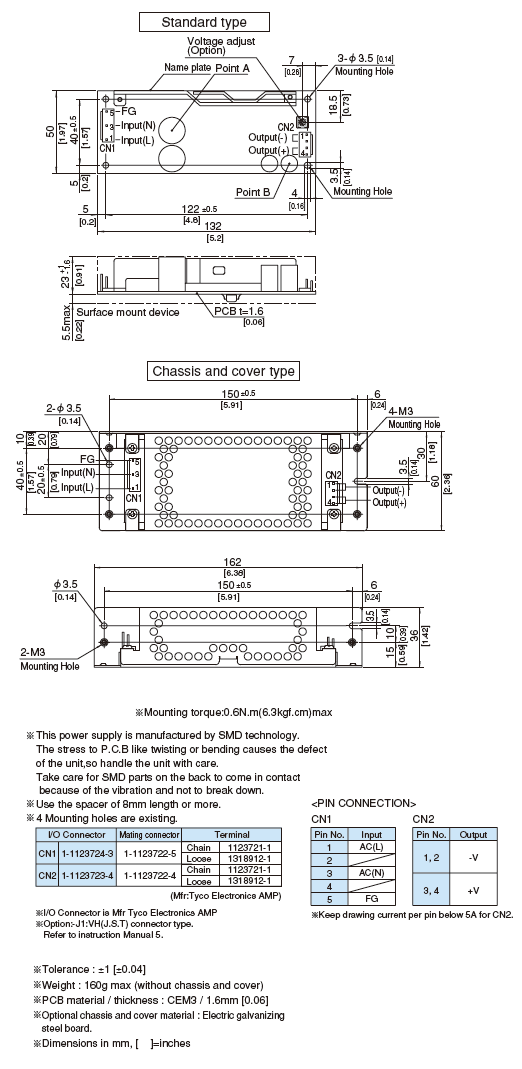

Case size: 50x28.5x132mm [1.97x1.12x5.2 inches] (WxHxD)
Weight: 160g max (without chassis and cover)
Cooling method: Convection
RoHS compliant
Safety agency approvals: UL60950-1, C-UL (CSA60950-1), EN60950-1 Complies with DEN-AN
Sort by selling qty
| Model No | Quantity | Price | Unit Price | SPQ | Ship date |
|---|---|---|---|---|---|
| LGA50A-12 5pcs | 5pcs | US$81.75 | US$16.35 | 1pc | 3week |
