Category | Noise filters |
Manufacture | Cosel |
Stock | Order |
Ship date | 2week (inquiry before Shipment) |
Price | US$92.95 |
Standard Packing Qty | 1pc |
Minimum Order Qty | 5pcs |
EMC/EMI devices
Single-phase input
Low leakage current type
- Single Phase 250 VAC
- Push down type terminal block

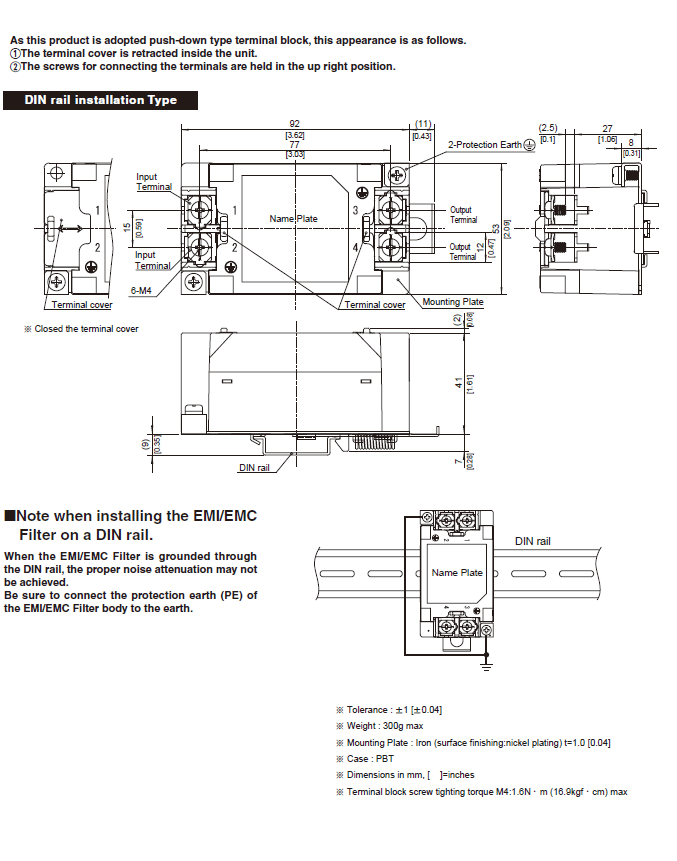

DIN rail installation type
Rated voltage [V]: AC 1φ 250 / DC250
Rated current [A]: 20
Leakage current (Input 125/250V 60Hz): 50μA/ 100μA max
Line to ground capacitor (nominal value): 470pF
*When the line to ground capacitor code is different,
the attenuation characteristic is different.
Operating temperature: -40 to +85℃ (Refer to Derating Curve)
Safety agency approvals: UL1283, CSA C22.2 No.8 (C-UL), DIN EN60939 VDE0565 Teil3-1, ENEC (At only AC input)
RoHS copmliant
Case size (without projection)/ Weight: 53x41x92 mm [2.09x1.61x3.62 inches] (WxHxD) /300g max (Option : -D refer to external view)
Sort by selling qty
Model No | Quantity | Price | Unit Price | SPQ | Ship date |
---|---|---|---|---|---|
NAM-20-471-D 5pcs | 5pcs | US$92.95 | US$18.59 | 1pc | 2week |
