PBA150F-24-N 3pcs Switching power supplies Cosel
PBA150F-24-N3pcs
| Category | Switching power supplies |
| Manufacture | Cosel |
| Stock | Order |
| Ship date | inquiry (inquiry before Shipment) |
| Price | US$199.71 |
| Standard Packing Qty | 1pc |
| Minimum Order Qty | 3pcs |
Power supplies
Unit type
Single output
AC-DC Power Supplies Enclosed type PBA150F
with Cover (Only 24V UL508 is acquired)
Max output wattage [W]: 156
Input voltage [V]: AC85 - 264 1φ or DC120 - 370
(AC50 or DC70 Please refer to the instruction manual 2.1 Input voltage)
Derating is required
Output
- Rated voltage [V]: 24
- Rated current [A]: 6.5
Output voltage adjustment ranage [V]: 19.2 to 27.0
Operating temperature: -10 to +71℃ (Required derating)
Humidity: 20 - 90%RH (Non condensing)
Altitude: 3,000m (10,000feet) max

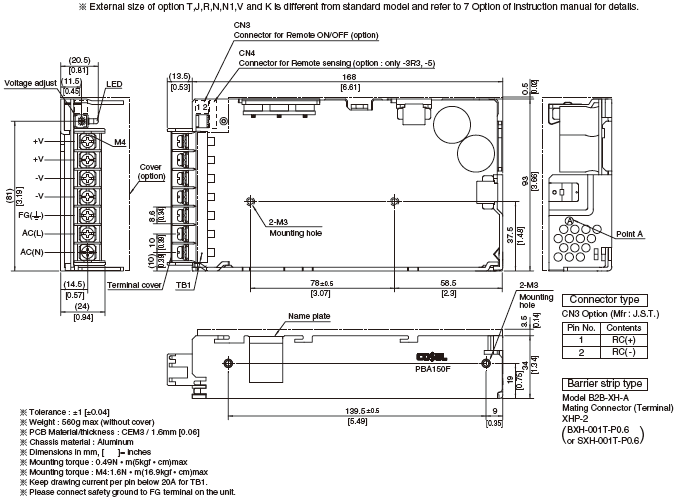

Case size: 34x93x168mm (without terminal block) [1.34x3.66x6.61 inches]
Weight: 560g max (Without cover)
Cooling method: Convection
RoHS compliant
Sort by selling qty
| Model No | Quantity | Price | Unit Price | SPQ | Ship date |
|---|---|---|---|---|---|
| PBA150F-24-N 3pcs | 3pcs | US$199.71 | US$66.57 | 1pc | inquiry |
