Electronic Components Distributor > Cosel > Noise filters > Three-phase input > TAC-50-333 1pc
TAC-50-3331pc
Category Noise filters
Manufacture Cosel
Stock Order
Ship date 3week (inquiry before Shipment)
Price US$80.15
Standard Packing Qty 1pc
Minimum Order Qty 1pc
Quantity cart
Cosel Three-phase input TAC-50-333 1pc

EMC/EMI devices
Three-phase input


High-attenuation type of common mode noise from 150kHz to 1MHz (1-stage filter)
TAC Series

Selectable leakage current value

Rated voltage [V]: AC Three Phase 500 (voltage range:528 max)
Rated current [A]: 50
Leakage current (Input 125/250V 60Hz): 3.5mA/ 7.0mA max
Line to ground capacitor (nominal value): 33,000pF
D.C Resistance [mΩ]: 7max

Operating temperature: -40 to +85℃ (Refer to Derating Curve)

Safety agency approvals: UL1283, CSA C22.2 No.8 (C-UL), DIN EN60939 VDE0565 Teil3-1, ENEC
RoHS compliant

Case size (without projection)/ Weight:
90x54x179 mm [3.54x2.13x7.05 inches] (WxHxD) / 1.4kg max
(Option : -D refer to external view)

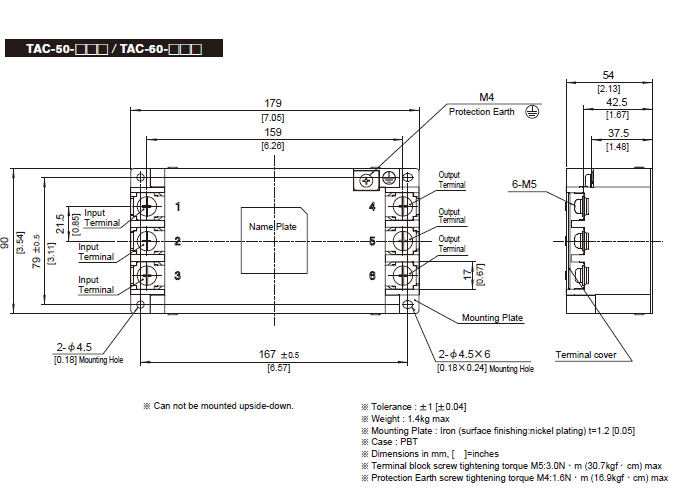

Structure_of_TAC_50_60

Sort by selling qty

Model No Quantity Price Unit Price SPQ Ship date
TAC-50-333 1pc 1pc US$80.15 US$80.15 1pc 3week
