TBC-150-1041pc
Category Noise filters
Manufacture Cosel
Stock Order
Ship date 3week (inquiry before Shipment)
Price US$745.60
Standard Packing Qty 1pc
Minimum Order Qty 1pc
Quantity cart
Cosel Three-phase input TBC-150-104 1pc

EMC/EMI devices
Three-phase input


High-attenuation type of common mode noise from 150kHz to 1MHz
(2-stage filter)
TBC Series

- Selectable leakage current value

Rated voltage [V]: AC Three Phase 500 (voltage range:528 max)
Rated current [A]: 150
Leakage current (Input 125/250V 60Hz): 3.5mA/ 7.0mA max
Line to ground capacitor (nominal value): 100,000pF
*When the line to ground capacitor code is different,
the attenuation characteristic is different.
D.C Resistance [mΩ]: 6max
Operating temperature: -40 to +85℃ (Refer to Derating Curve)

Safety agency approvals: UL1283, CSA C22.2 No.8 (C-UL), DIN EN60939 VDE0565 Teil 3-1, ENEC
RoHS copmliant

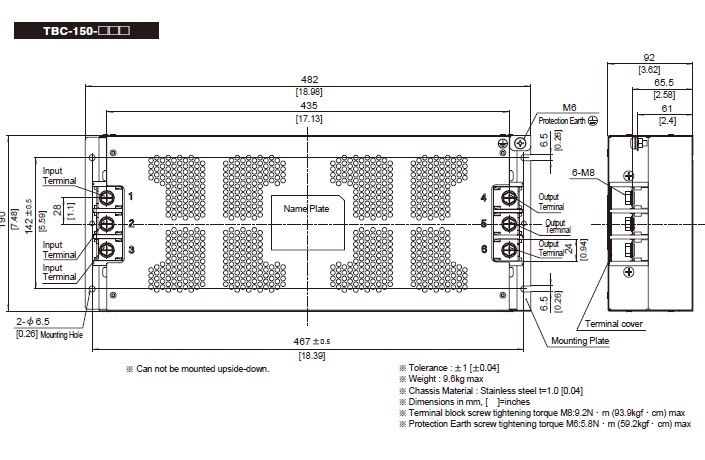

Case size (without projection)/ Weight:
190x92x482 mm [7.48x3.62x18.98 inches] (WXHXD) / 9.6kg max
Structure_of_TBC150

Sort by selling qty

Model No Quantity Price Unit Price SPQ Ship date
TBC-150-104 1pc 1pc US$745.60 US$745.60 1pc 3week
