Electronic Components Distributor > Cosel > Noise filters > Single-phase input > ESC-06-681 10pcs
ESC-06-68110pcs
Category Noise filters
Manufacture Cosel
Stock Order
Ship date 2week (inquiry before Shipment)
Price US$131.80
Standard Packing Qty 1pc
Minimum Order Qty 10pcs
Quantity cart
Cosel Single-phase input ESC-06-681 10pcs

EMC/EMI devices
Single-phase input

General-purpose Small-size
Screwless terminal type
150kHz to 1MHz
1-stage filter
Single-phase 250VAC
Torque management is unnecessary with screwless.

Rated voltage [V]: AC 1φ 250 / DC250
Rated current [A]: 6
Leakage current (Input 125/250V 60Hz): 75.5 μA/ 150 μA max
Line to ground capacitor (nominal value): 680pF
Operating temperature: -40 to +85℃

Safety agency approvals: UL1283, CSA C22.2 No.8 (C-UL), DIN EN60939 VDE0565 Teil3-1, ENEC (At only AC input)
RoHS copmliant

Case size (without projection)
: 39x30x85 mm [1.54x1.18x3.35 inches] (WxHxD)
Weight: 170g max

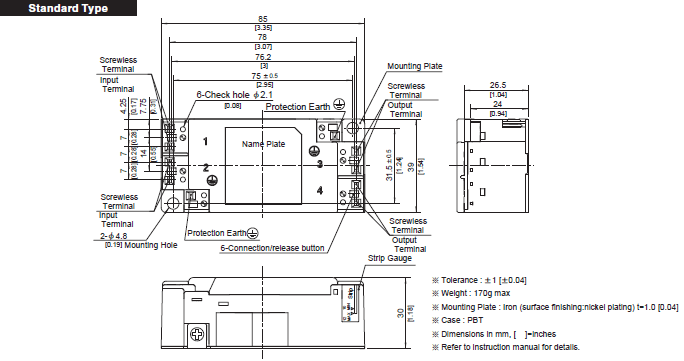

Structure_of_ESC_ESM_ESP_Standard

Sort by selling qty

Model No Quantity Price Unit Price SPQ Ship date
ESC-06-681 10pcs 10pcs US$131.80 US$13.18 1pc 2week
