SUTW32412 10pcs Switching power supplies Cosel
SUTW3241210pcs
| Category | Switching power supplies |
| Manufacture | Cosel |
| Stock | Order |
| Ship date | 12week (inquiry before Shipment) |
| Price | US$110.50 |
| Standard Packing Qty | 1pc |
| Minimum Order Qty | 10pcs |
Power supplies
On-board type
DC-DC converter/Multi output
DIP type
DC-DC Converters PCB Mount type SUTW3
Max output wattage [W]: 3.12
Input voltage [V]: DC18 - 36
Output voltage* [V]: ±12 (+24)
*Output pins can be connected in series to make a 24V/30V output.
Output current [A]: 0.13
Output voltage adjustment range [V]: Fixed (TRM pin open) ±5% adjustable by external VR
Operating temp., humid. and altitude:
: -40 to +85℃
: 20 - 95%RH (Non condensing), (Required Derating)
: 3,000m (10,000feet) max

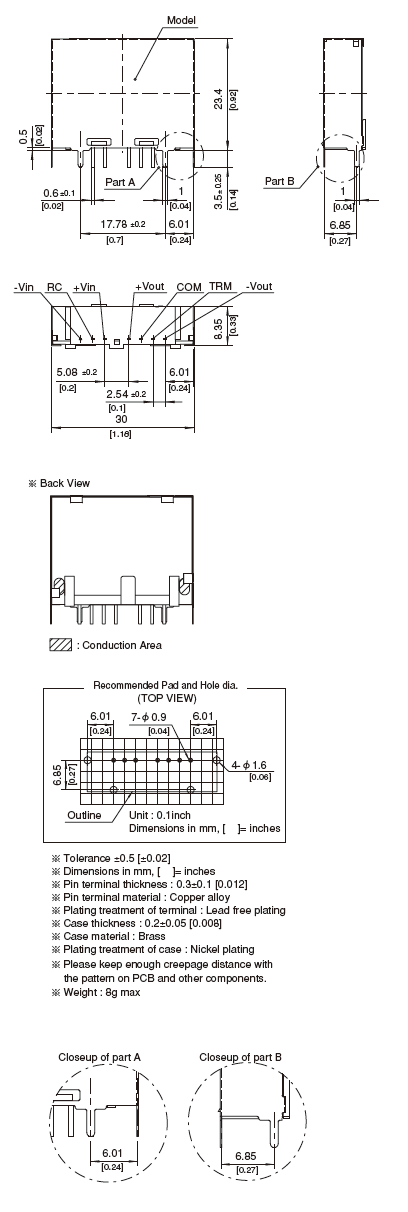

Case size: 30.0x23.4x9.15mm [1.18x0.92x0.36 inches]
Weight: 8g max
Cooling method: Convection/Forced air
RoHS compliant
Safety agency approvals: UL60950-1, C-UL, EN60950-1
Sort by selling qty
| Model No | Quantity | Price | Unit Price | SPQ | Ship date |
|---|---|---|---|---|---|
| SUTW32412 10pcs | 10pcs | US$110.50 | US$11.05 | 1pc | 12week |
