CQHS3004832T 1pc Switching power supplies Cosel
| Category | Switching power supplies |
| Manufacture | Cosel |
| Stock | Order |
| Ship date | 2week (inquiry before Shipment) |
| Price | US$68.28 |
| Standard Packing Qty | 1pc |
| Minimum Order Qty | 1pc |
Power supplies
Power module type
DC-DC converter/Single output
DC-DC Converters Power Module type CQHS300
with Remote ON/OFF
Positive logic control
Max output wattage [W]: 300.8
Input voltage [V]: DC36 - 76
Output voltage [V]: 32
Output current [A]: 9.4
Output voltage adjustment range*: 27.2 - 35.2
Fixed (TRM pin open), adjustable by external resistor
*When the input voltage is in the range of DC36-40V, output voltage is limited. Refer to the manual.
Operating temp., humid. and altitude: -40 to +100℃ (On aluminum base plate), 20 - 95%RH (Non condensing) (Refer to derating curve), 3,000m (10,000 feet) max

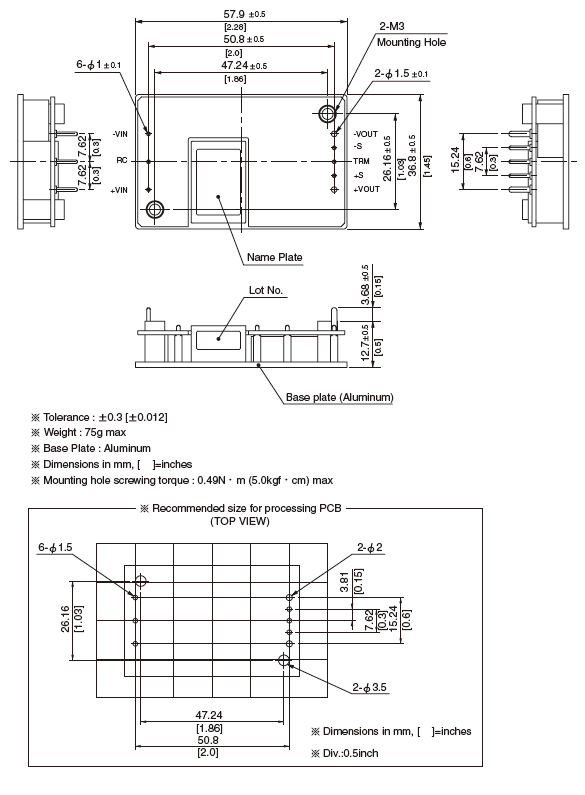

Case size/ weight: 57.9x12.7x36.8mm [2.28x0.5x1.45 inches] (WxHxD) / 75g max
Cooling method:Conduction cooling (e.g. heat radiation from the aluminum base plate to the attached heat sink)
RoHS compliant
Safety approvals: UL60950-1,C-UL (CSA60950-1),EN60950-1
Sort by selling qty
| Model No | Quantity | Price | Unit Price | SPQ | Ship date |
|---|---|---|---|---|---|
| CQHS3004832T 1pc | 1pc | US$68.28 | US$68.28 | 1pc | 2week |
