Electronic Components Distributor > Cosel > Switching power supplies > Power module type > CQS24150-8 2pcs
CQS24150-82pcs
Discontinued product
Category Switching power supplies
Manufacture Cosel
Stock Order
Ship date 3week (inquiry before Shipment)
Price US$110.68
Standard Packing Qty 1pc
Minimum Order Qty 2pcs
Quantity cart
Cosel Power module type CQS24150-8 2pcs

Power supplies
Power module type
DC-DC converter/Single output

DC-DC Converters Power Module type CQS

Max output wattage [W]: 120.0
Input voltage [V]: DC20 - 33
Output voltage [V]: 15
Output current [A]: 8
Output voltage adjustment range*: -20% / +5%
Fixed (TRM pin open), adjustable by external resistor
*Refer to the instruction manual for input voltage derating.
Operating temp., humid. and altitude:
: -40 to +85℃
: 20 - 95%RH (Non condensing) (Refer to derating curve)
: 3,000m (10,000feet) max
Case size: 57.9x8.5x36.8mm [2.28x0.33x1.45 inches] (WxHxD)
Weight: 40g max
Cooling method: Convection / Forced air
RoHS compliant
Safety approvals: UL60950-1,C-UL (CSA60950-1),EN60950-1

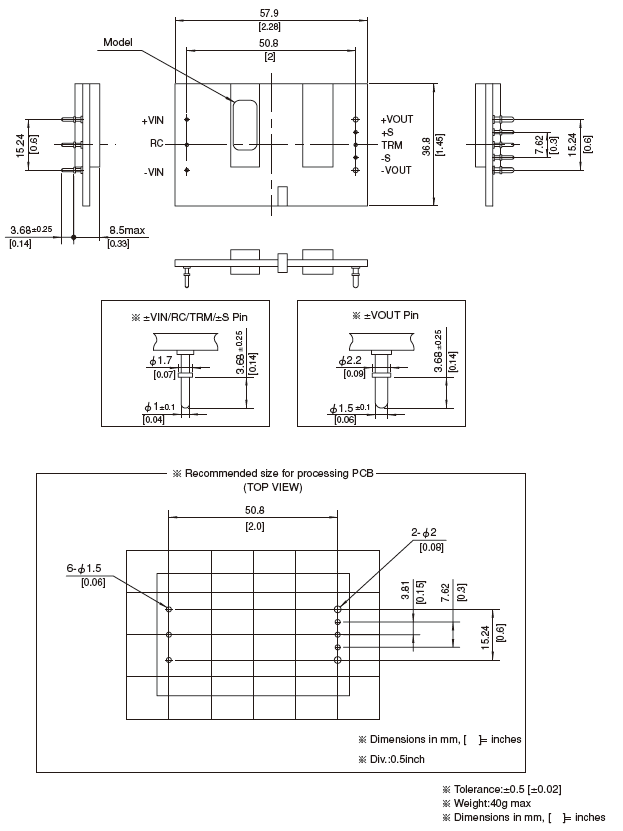

Structure_of_CQS

Sort by selling qty

Model No Quantity Price Unit Price SPQ Ship date
CQS24150-8 2pcs 2pcs US$110.68 US$55.34 1pc 3week
