LEB100F-0530 2pcs Switching power supplies Cosel
LEB100F-05302pcs
Discontinued product
| Category | Switching power supplies |
| Manufacture | Cosel |
| Stock | Order |
| Ship date | 3week (inquiry before Shipment) |
| Price | US$108.98 |
| Standard Packing Qty | 1pc |
| Minimum Order Qty | 2pcs |
Power supplies
PCB unit type
Multi output
AC-DC Power Supplies Open Frame/ Enclosed type LFB100F
Without options
Input voltage [V]: AC85 - 264 1φ or DC120 - 370
DC output:
V1: +5V 5A
V2: +30V 3.2(Peak 5.6)A
Peak loading for 10sec. and Duty 35% max
Output voltage adjustment range:
V1: 4.5V - 5.5V
V2: Fixed
Operating temp., humid. and altitude:
: -10 to +70℃
: 20 - 90%RH (Non condensing), (Refer to DERATING CURVE)
: 3,000m (10,000feet) max

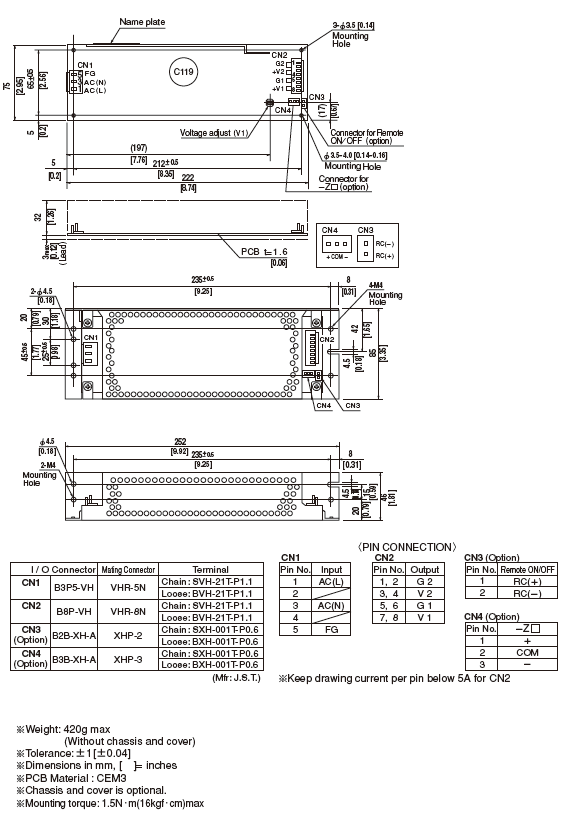

Case size: 75x35x222 mm [2.95x1.38x8.74 inches] (WxHxD)
Weight: 420g max (without chassis and cover)
Cooling method: Convection
RoHS compliant
Safety agency approvals:
UL60950-1, C-UL, EN60950-1, EN50178 Complies with DEN-AN
IEC60950-1 (At only AC input)
Sort by selling qty
| Model No | Quantity | Price | Unit Price | SPQ | Ship date |
|---|---|---|---|---|---|
| LEB100F-0530 2pcs | 2pcs | US$108.98 | US$54.49 | 1pc | 3week |
