PBA100F-5 3pcs Switching power supplies Cosel
PBA100F-53pcs
| Category | Switching power supplies |
| Manufacture | Cosel |
| Stock | Order |
| Ship date | 3week (inquiry before Shipment) |
| Price | US$153.09 |
| Standard Packing Qty | 1pc |
| Minimum Order Qty | 3pcs |
Power supplies
Unit type
Single output
AC-DC Power Supplies Enclosed type PBA100F
Max output wattage [W]: 100
Input voltage [V]: AC85 - 264 1φ or DC120 - 370 (AC50 or DC70 Please refer to the instruction manual 2.1 Input voltage)
Derating is required
Output
- Rated voltage [V]: 5
- Rated current [A]: 20
Output voltage adjustment ranage [V]: 4.00 to 5.50
Operating temp., humid. and altitude: -10 to +71℃ (Required derating), 20 - 90%RH (Non condensing), 3,000m (10,000feet) max

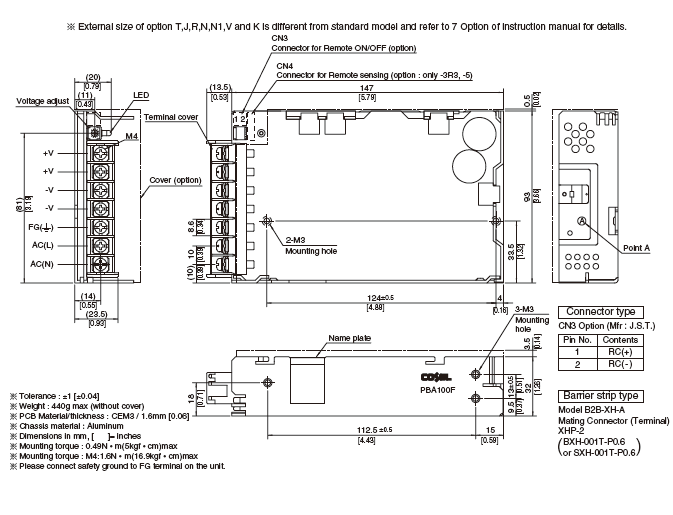

Case size/Weight: 32x93x147mm (without terminal block) [1.23x3.66x5.79 inches] /440g max (Without cover)
Cooling method: Convection
Safety agency approvals (At only AC input): UL60950-1, C-UL(CSA60950-1), EN60950-1, EN50178 Complies with DEN-AN
RoHS compliant
Sort by selling qty
| Model No | Quantity | Price | Unit Price | SPQ | Ship date |
|---|---|---|---|---|---|
| PBA100F-5 3pcs | 3pcs | US$153.09 | US$51.03 | 1pc | 3week |
