PBA1500F-7R5 1pc Switching power supplies Cosel
| Category | Switching power supplies |
| Manufacture | Cosel |
| Stock | Order |
| Ship date | 3week (inquiry before Shipment) |
| Price | US$623.30 |
| Standard Packing Qty | 1pc |
| Minimum Order Qty | 1pc |
Power supplies
Unit type
Single output
AC-DC Power Supplies Enclosed type PBA1500F
Max output wattage [W]: 1005
Input voltage [V]: AC85 - 264 1φ or DC120 - 370
(AC50 or DC70 Please refer to the instruction manual 7. option)
Derating is required
Output
- Rated voltage [V]: 7.5
- Rated current [A]: ACIN 100V - 200, ACIN 200V - 200
Output voltage adjustment ranage [V]: 5.25 to 8.25
Operating temperature: -20 to +71℃ (Required derating)
Humidity: 20 - 90%RH (Non condensing)
Altitude: 3,000m (10,000feet) max

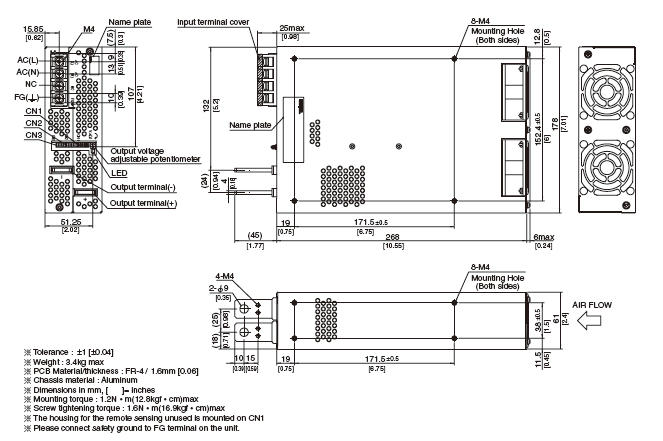

Case size
: 178x61x268mm (without terminal block and screw) [7.01x2.4x10.55 inches]
Weight: 3.4kg max
Cooling method: Forced cooling (internal fan)
Safety agency approvals (At only AC input): UL60950-1, C-UL(CSA60950-1), EN60950-1, EN50178 Complies with DEN-AN
RoHS compliant
Sort by selling qty
| Model No | Quantity | Price | Unit Price | SPQ | Ship date |
|---|---|---|---|---|---|
| PBA1500F-7R5 1pc | 1pc | US$623.30 | US$623.30 | 1pc | 3week |
