PBA15F-3R3 5pcs Switching power supplies Cosel
PBA15F-3R35pcs
| Category | Switching power supplies |
| Manufacture | Cosel |
| Stock | Order |
| Ship date | 2week (inquiry before Shipment) |
| Price | US$103.75 |
| Standard Packing Qty | 1pc |
| Minimum Order Qty | 5pcs |
Power supplies
Unit type
Single output
AC-DC Power Supplies Enclosed type PBA15F
Max output wattage [W]: 9.9
Input voltage [V]: AC85 - 264 1φ or DC110 - 370
(AC50 or DC70 Please refer to the instruction manual 2.1 Input voltage)
Derating is required
Output
- Rated voltage [V]: 3.3
- Rated current [A]: 3
Output voltage adjustment ranage [V]: 2.85 to 3.63
Operating temperature: -10 to +71℃ (Required derating)
Humidity: 20 - 90%RH (Non condensing)
Altitude: 3,000m (10,000feet) max

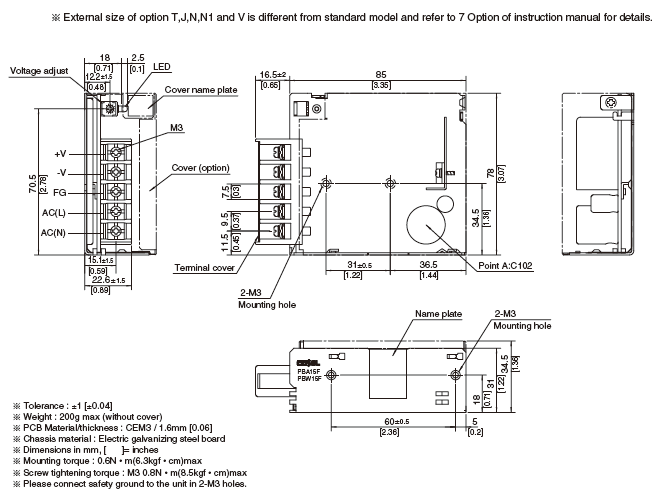

Case size: 31x78x85mm (without terminal block) [1.22x3.07x3.35 inches]
Weight: 200g max (Without cover)
Cooling method: Convection
Safety agency approvals (At only AC input): UL60950-1, C-UL(CSA60950-1), EN60950-1, EN50178 Complies with DEN-AN
RoHS compliant
Sort by selling qty
| Model No | Quantity | Price | Unit Price | SPQ | Ship date |
|---|---|---|---|---|---|
| PBA15F-3R3 5pcs | 5pcs | US$103.75 | US$20.75 | 1pc | 2week |
