PBW15F-12 3pcs Switching power supplies Cosel
| Category | Switching power supplies |
| Manufacture | Cosel |
| Stock | Order |
| Ship date | 3week (inquiry before Shipment) |
| Price | US$71.25 |
| Standard Packing Qty | 1pc |
| Minimum Order Qty | 3pcs |
Power supplies
Unit type
Single output
AC-DC Power Supplies Enclosed type PBW15F
Max output wattage [W]*1: 16.8
Input voltage [V]
: AC85 - 264 1φ or DC110 - 370 (AC50 or DC70, Derating is required)
Output
- Rated voltage [V]: ±12 / (+24 reference number)
- Rated current 1 [A]: 0.7 / 0.7
- Rated current 2 [A]*1: 1.4 / -
Output voltage adjustment ranage [V]
: 9.60 - 13.2 (+V and -V are simultaneously adjusted)
*1The sum of +power -power must be less than output power.
Operating temperature: -10 to +71℃ (Required derating)
Humidity: 20 - 90%RH (Non condensing)
Altitude: 3,000m (10,000feet) max

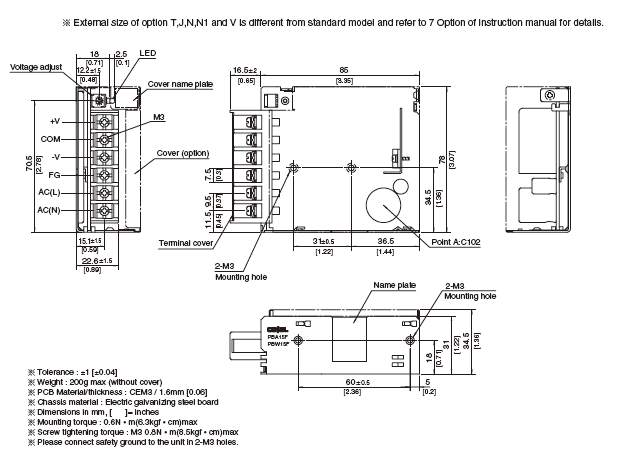

Case size
: 31x78x85mm [1.22x3.07x3.35 inches] (without terminal block) (WxHxD)
Weight: 200g max
Cooling method: Convection
Safety agency approvals (At only AC input)
: UL60950-1, C-UL(CSA60950-1), EN60950-1, EN50178 Complies with DEN-AN
RoHS compliant
Sort by selling qty
| Model No | Quantity | Price | Unit Price | SPQ | Ship date |
|---|---|---|---|---|---|
| PBW15F-12 3pcs | 3pcs | US$71.25 | US$23.75 | 1pc | 3week |
