Electronic Components Distributor > Cosel > Switching power supplies > Unit type > PBW30F-15 3pcs
PBW30F-153pcs
Category Switching power supplies
Manufacture Cosel
Stock Order
Ship date 3week (inquiry before Shipment)
Price US$89.55
Standard Packing Qty 1pc
Minimum Order Qty 3pcs
Quantity cart
Cosel Unit type PBW30F-15  3pcs

Power supplies
Unit type
Single output

AC-DC Power Supplies Enclosed type PBW30F

Max output wattage [W]*1: 30.0
Input voltage [V]
: AC85 - 264 1φ or DC110 - 370 (AC50 or DC70, Derating is required)
Output
- Rated voltage [V]: ±15 / (+30 reference number)
- Rated current 1 [A]: 1.0 / 1.0
- Rated current 2 [A]*1: 1.4 / -
Output voltage adjustment ranage [V]: 13.2 - 16.5 (+V and -V are simultaneously adjusted)
*1The sum of +power -power must be less than output power.

Operating temperature: -10 to +71℃ (Required derating)
Humidity: 20 - 90%RH (Non condensing)
Altitude: 3,000m (10,000feet) max
Case size
: 31x78x103mm [1.22x3.07x4.06 inches] (without terminal block) (WxHxD)
Weight: 270g max
Cooling method: Convection

Safety agency approvals (At only AC input)
: UL60950-1, C-UL(CSA60950-1), EN60950-1, EN50178 Complies with DEN-AN
RoHS compliant

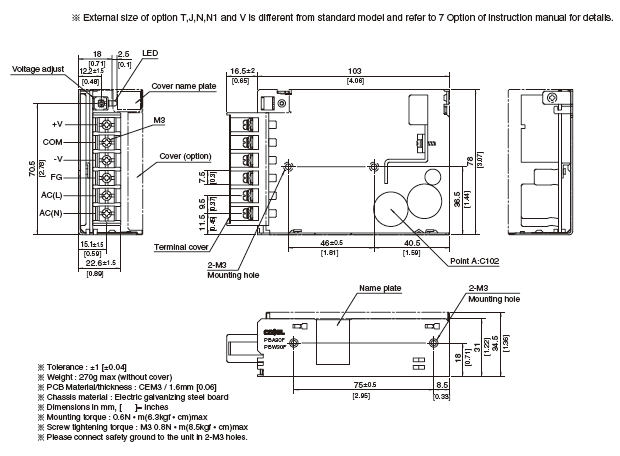

Structure_of_PBW30F

Sort by selling qty

Model No Quantity Price Unit Price SPQ Ship date
PBW30F-15 3pcs 3pcs US$89.55 US$29.85 1pc 3week
