Electronic Components Distributor > Cosel > Switching power supplies > Unit type > ADA600F-30 1pc
Category Switching power supplies
Manufacture Cosel
Stock Order
Ship date 4week (inquiry before Shipment)
Price US$152.60
Standard Packing Qty 1pc
Minimum Order Qty 1pc
Quantity cart
Cosel Unit type ADA600F-30  1pc

Power supplies
Unit type
Single output

AC-DC Power Supplies Enclosed type

Input Rated voltage [V]:
AC85 - 264 1φ or DC120 - 350(AC64 or DC90 optionally available)
Output Rated current [A]
ACIN 100V*: 11 (Peak 20) convection, 16.5 (Peak 20) forced air
ACIN 200V*: 12 (Peak 24.5) convection, 20 (Peak 24.5) forced air
*Peak loading for 10sec.and duty 35% max

Output voltage adjustment ranage [V]: 27.0 - 33.0
Operating temp: -10 to +71℃
Humidity: 20 - 90%RH (Non condensing) (Refer to derating curve).
Altitude: 3,000m (10,000feet) max

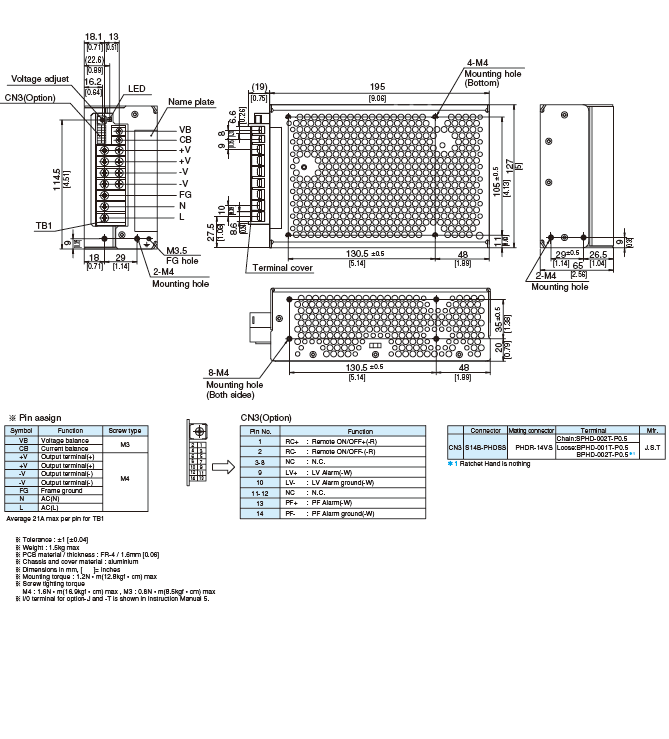

Case size: 65x127x195mm [2.56x5x7.68 inches] (WxHxD) (without terminal block)
Weight: 1.5kg max

Cooling method: Convection/Forced air
RoHS compliant
Safty approvals
EN50178 Complies with DEN-AN
IEC60950-1 (At only AC input)

Sort by selling qty

Model No Quantity Price Unit Price SPQ Ship date
ADA600F-30 1pc 1pc US$152.60 US$152.60 1pc 4week
