DBS400B28 1pc Switching power supplies Cosel
| Category | Switching power supplies |
| Manufacture | Cosel |
| Stock | Order |
| Ship date | 4week (inquiry before Shipment) |
| Price | US$126.90 |
| Standard Packing Qty | 1pc |
| Minimum Order Qty | 1pc |
Power supplies
Power module type
DC-DC converter/Single output
DC-DC Converters Power Module type DBS400B
Max output wattage [W]: 406
Input voltage [V]: DC200 - 400
Output voltage [V]: 28
Output current [A]: 14.5
Output voltage adjustment range: Fixed (TRM pin open), 60 - 110% adjustable by external VR or external voltage
Operating temp., humid. and altitude*:
: -20 to +85℃ (On aluminum base plate)
: 20 - 95%RH (Non condensing) (Refer to derating curve)
: 3,000m (10,000feet) max
*Please consult mfr in regard to use from -40℃

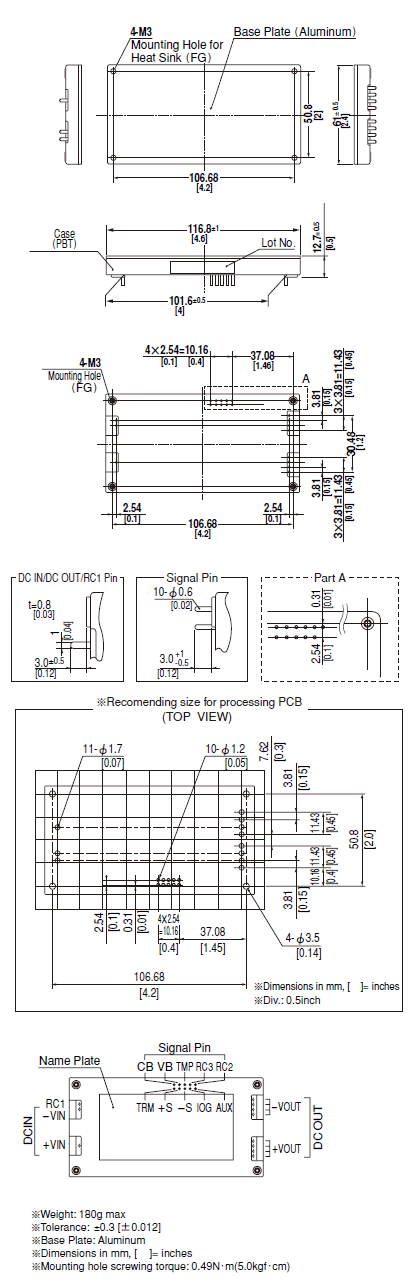

Case size: 61x12.7x116.8mm [2.4x0.5x4.6 inches] (WxHxD)
Weight: 150g max
Cooling method: Conduction cooling (e.g. heat radiation from the aluminum base plate to the attached heat sink)
RoHS compliant
Safety approvals: UL60950-1, C-UL, EN60950-1, EN50178 Complies with DEN-AN
Sort by selling qty
| Model No | Quantity | Price | Unit Price | SPQ | Ship date |
|---|---|---|---|---|---|
| DBS400B28 1pc | 1pc | US$126.90 | US$126.90 | 1pc | 4week |
