Electronic Components Distributor > PPS > Motor drive unit > 5-phase microstep driver > 5D13M 1pc
5D13M1pc
Category Motor drive unit
Manufacture PPS
Stock Order
Ship date inquiry (inquiry before Shipment)
Price US$166.67
Standard Packing Qty 1pc
Minimum Order Qty 1pc
Quantity cart
PPS 5-phase microstep driver 5D13M 1pc

Motor control components
5-phase microstep drive

5 Phase stepper motor driver

Cost-effective, ultra-compact, high-efficiency
Highest reliability due to simple design
EC directive conformity
Enforcement corresponding to RoHS compliance
Power supply DC15 to 36V, 2.5A Max
Driving method : Chopper constant current, pentagon wiring
Output current : 0.30A to 1.50A/Phase( L-excitation), 0.20A to 0.75A/Phase (H-excitation)
Max clock frequency : 500kpps
Net weight :220g
Operating temperature : 0 to 40℃
Storage temperature : -10 to +60℃
RoHS compliant

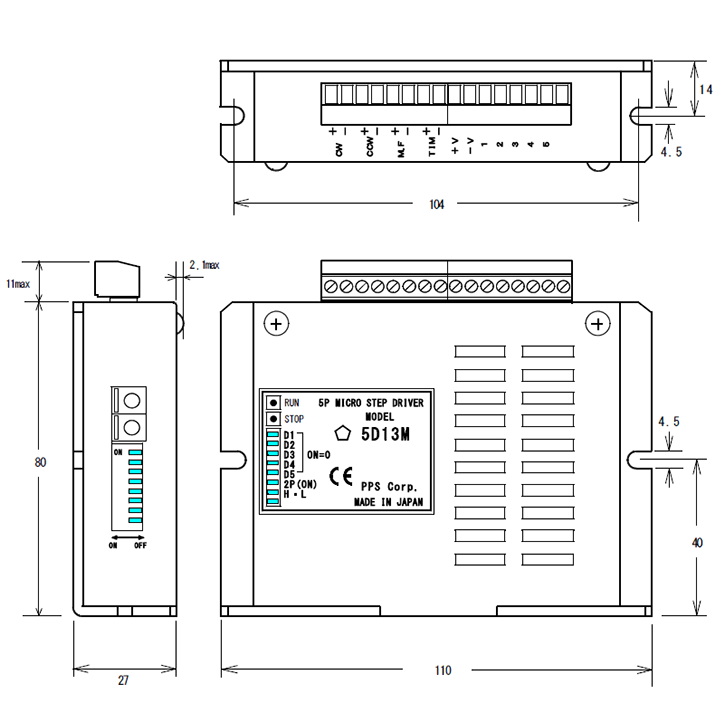

Dimension_pps_5d13m.

Sort by selling qty

Model No Quantity Price Unit Price SPQ Ship date
5D13M 1pc 1pc US$166.67 US$166.67 1pc inquiry
